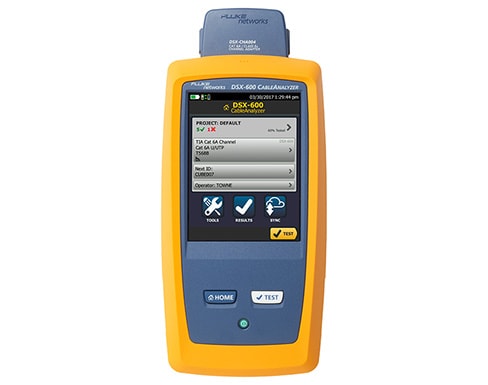

Fluke DSX-600 CableAnalyzer Copper Certifier

The Fluke DSX-600 CableAnalyzer Copper Certifier certifies copper, twisted pair structured cabling from Cat 3 / Class C through Cat 6A / Class E_A. With the Fluke DSX-600 cable certifier, a 500 MHz frequency range certifies Cat 6A/Class EA cabling for 10 Gigabit Ethernet in just 10 seconds, increasing user efficiency and productivity with demonstrable results on the bottom line. The DSX-600's advanced diagnostics pinpoint the location of a failure. ProjX management system eases tasks from initial set-up of a job to system acceptance. LinkWare Live cloud service lets the Project Manager remotely set up the testers, monitor job progress and even location from any smart device. The Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels.

Not available for rental or purchase in the United States.

View the Fluke DSX-5000

View the Fluke DSX-8000

Product Info Related Products

Feature	DSX-600	DSX-5000	DSX-8000
Description	Essential Cat 6A and Class E_A copper tester	Cat 6A and Class F_A copper tester	Fastest, most accurate Cat 8 and Class I/II copper cable tester
Cat 3 – Cat 6A / Class E_A	X	X	X
Class F_A		X	X
Cat 8 / Class I/II			X
Maximum Frequency	500 MHz	1000 MHz	2000 MHz
Autotest Time	10 sec Class E_A/Cat 6A 9 sec Class E/Cat 6	10 sec Class E_A/Cat 6A 9 sec Class E/Cat 6	16 sec Cat 8 / Class I/II 8 sec Class E_A/Cat 6A 7 sec Class E/Cat 6
Shield Integrity Test	X	X	X
Internal Memory	≈ 12,000 Cat 6A with plots	≈ 12,000 Cat 6A with plots	≈ 12,000 Cat 6A with plots
Battery Life	≈ 8 Hours	≈ 8 Hours	≈ 8 Hours
Cable Identifier Length	60 characters	60 characters	60 characters
Permanent Link Adapter	Optional	X	X
ProjX^TM Project Management	X	X	X
Taptive^TM Gesture-based User Interface	X	X	X
Advanced Fault Info Troubleshooting	Limited – (HDTDR & HDTDX)	X	X
PoE Resistance Unbalance		X	X
Integrated Alien Crosstalk Capability		X	X
LinkWare^TM Professional Reports	X	X	X
LinkWare^TM Live capable	X	X	X
TCL Measurement		X	X
Coax Adapters	Optional	Optional	Optional
M12 Adapters	Optional	Optional	Optional
Patch Cord Adapters		Optional	Optional
Fiber – OLTS, OTDR & Inspection		Optional	Optional

Cat 6A and Class E_A Copper Certification

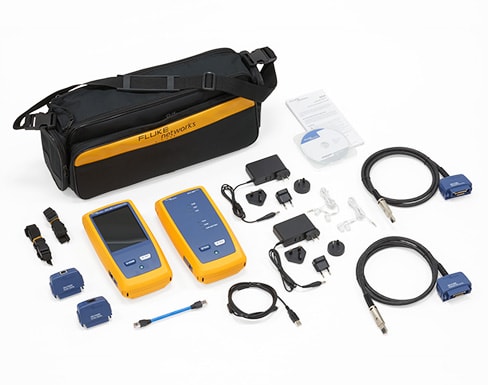

Includes Channel Measurement Adapters; Optional rugged Permanent Link Adapters with removable test plug available
10 second Cat 6A test time
ProjX Management System makes test setup fast and foolproof
HDTDX and HDTDR diagnostics pinpoint fault location
Integrates with LinkWare Live to manage jobs and testers from any smart device
Quickly and easily create professional custom PDF reports with LinkWare PC

TIA - Category 3, 5, 5e, 6, 6A per TIA 568-C.2 or TIA-1005
ISO/IEC - Class C and D, E, E_A certification per ISO/IEC 11801:2002 and amendments
IEEE 802.3 - 10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T

SKU: FLUK-DSX-600PRO
