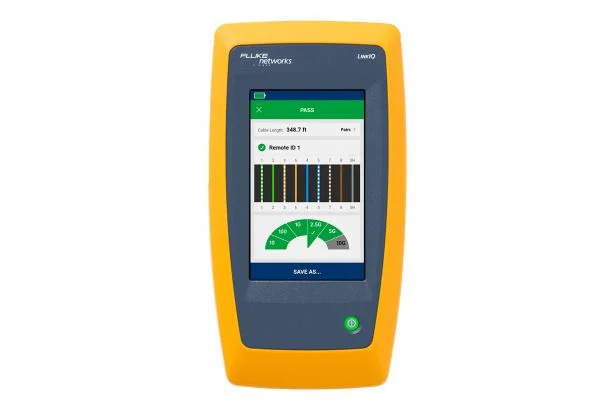

Fluke LinkIQ Cable & Network Tester Advanced Kit

The Fluke LinkIQ Cable & Network Tester Advanced Kit can test up to 10Gbps Ethernet on 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1000BASE-T, 100BASE-TX, and 10BASE-T Systems with a wire map. The device performs these tests through frequency-based measurements with a measuring length of up to 1000 feet (305 m), using IEEE-standards-based measurements to achieve testing requirements. The Fluke Networks LinkIQ Cable & Network Tester can identify key network issues and validate switch configuration while providing a simple pass/fail test result based on performance settings.

Product Info

Meauring length	1000 feet (305 m)
Languages supported in UI	English
Weight	1lb. (624 g)
Battery	Type: Lithium-ion, 3.6 V, 6400 mAh Life: 8 hours (typical) Charge time: 4.5 hours Charging temperature range: 0°C to +40°C
Power adapter	Input: 100 to 240 VAC ±10%, 50 / 60Hz Output: 15 VDC, 2 A maximum Class II
Host interface	USB type C
Display	800 x 480 color capacitive multi-touch
Dimensions	8.5 x 4.5 in (21.59 x 11.43 cm)
Operating temperature	0°C to +45°C

Find maximum cabling speed (Up to 10 Gb/s)
Install and troubleshoot PoE devices via Switch Negotiation and PoE Load Test
Identify connected switch information (Switch Name, Port Number, and VLAN)
Validate cable performance up to 10GBASE-T via frequency-based measurements
Test connectivity to TCP/IP network through IP configuration and ping
Cable diagnostics including length plus IntelliTone™, remotes 2-8
Manage results and print reports from LinkWare™ PC

Diagnostic Protocols
IP Address Setup
IP Ping Test
Power Over Ethernet Compatibility
Power Over Ethernet Measurements
Port Blink
Test Port
Tone Generator
Remote ID Locators
