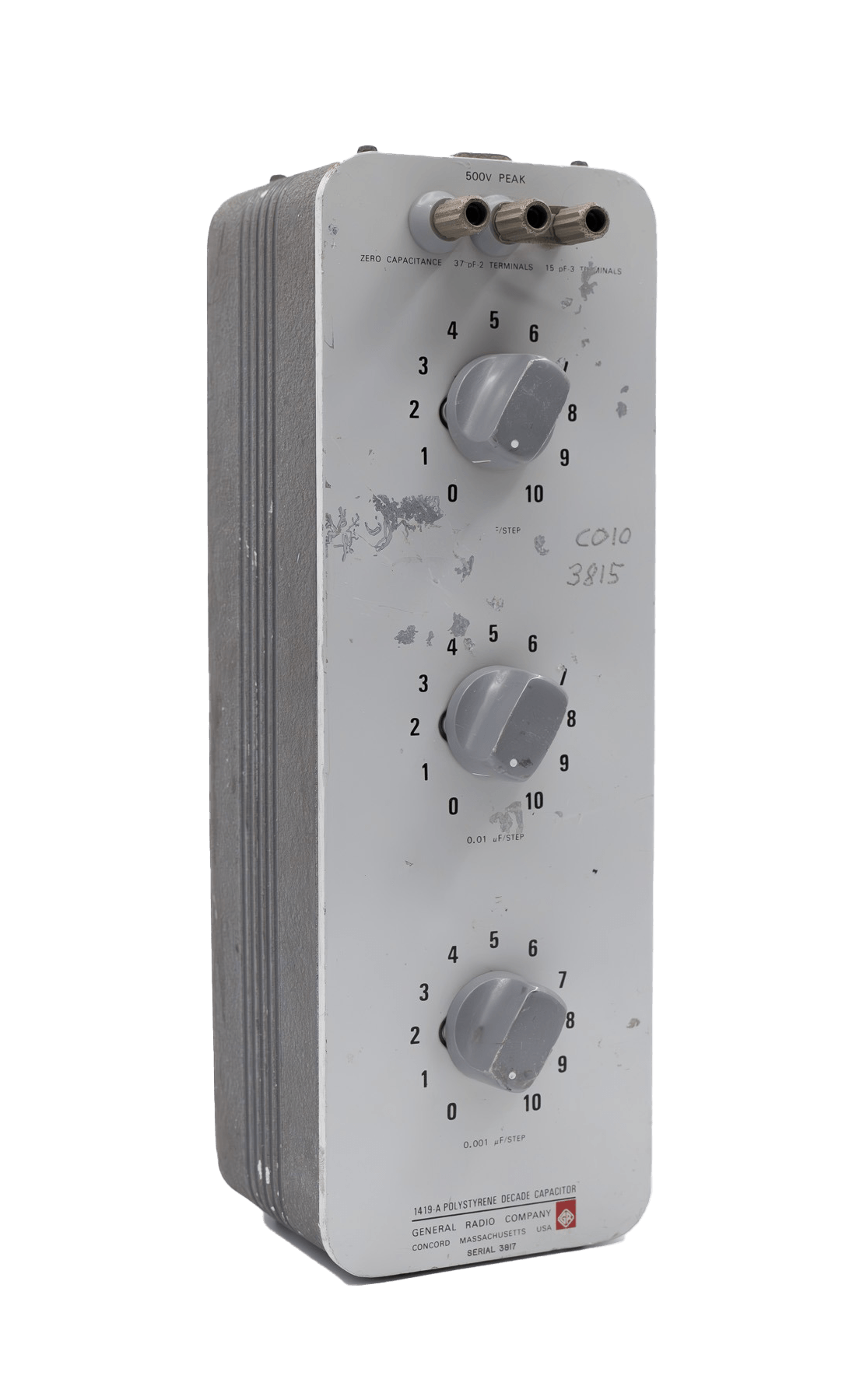

General Radio 1419-A

Decade Capacitor

The General Radio 1419-A Decade Capacitor offers a max capacitance of 1.110μF and a minimum step size of 0.001μF. This device has a polystyrene dielectric and 3 decades. It is used for the calibration of LCR meters and multimeters.

Product Info Related Products

Dielectric	Polystyrene
Maximum capacitance	1.110μF
Minimum step size	0.001μF
Decades	3
Accuracy 2-terminal connection	±1%
Dissipation factor at 1kHz	±1% except ±1.5% on smallest decade
Insulation resistance at 100V, 25°C, 50% RH typical	<0.0002
Maximum voltage (DC or peak)	>10^12Ω
Maximum operating temperature	65°C
Voltage recovery	<0.1%
Resonant frequencies (typical)	1μF - 400kHz; 0.1μF - 1MHz; 0.01μF - 2.7MHz; 0.001μF - 7.8MHz; 0.0001μF - 23MHz
DC Capacitance / 1kHz capacitance	<1.001
