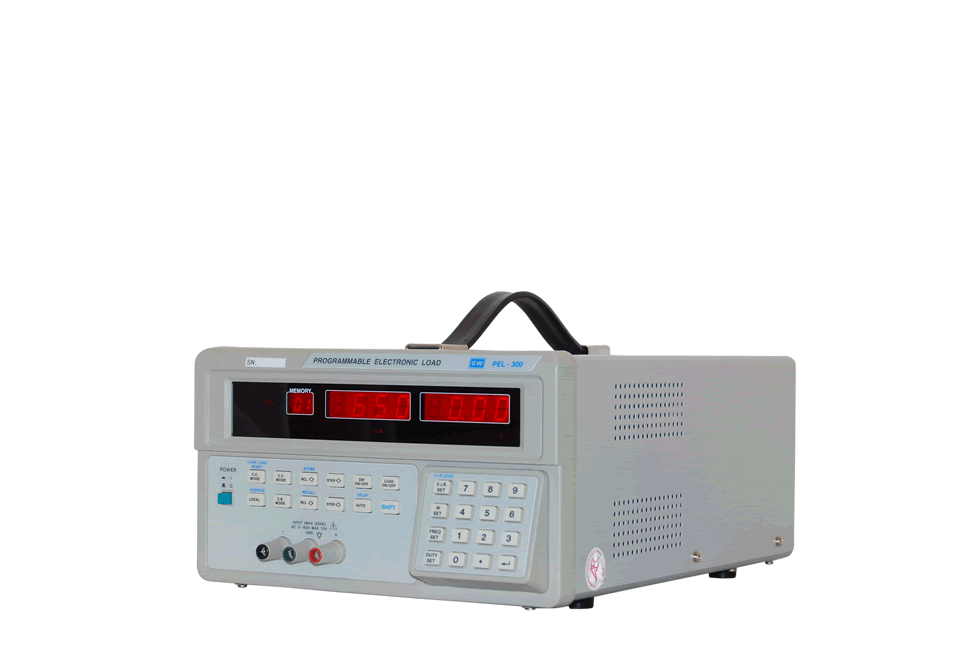

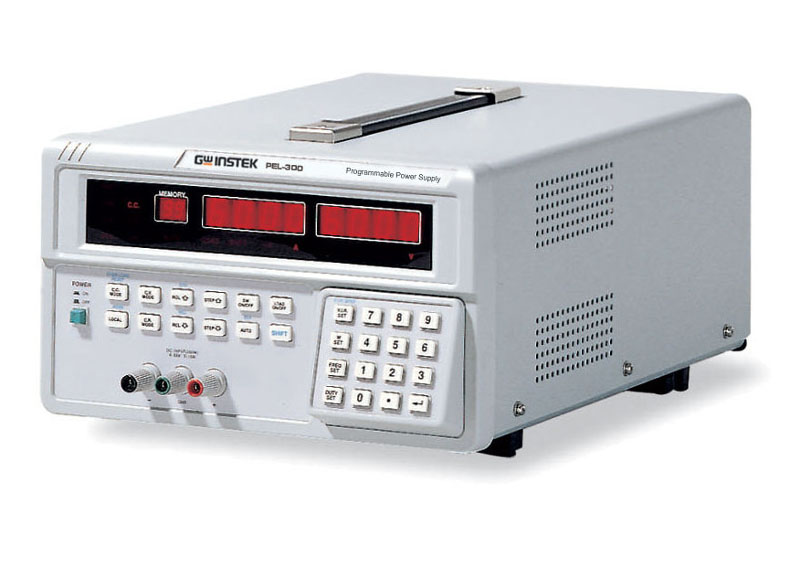

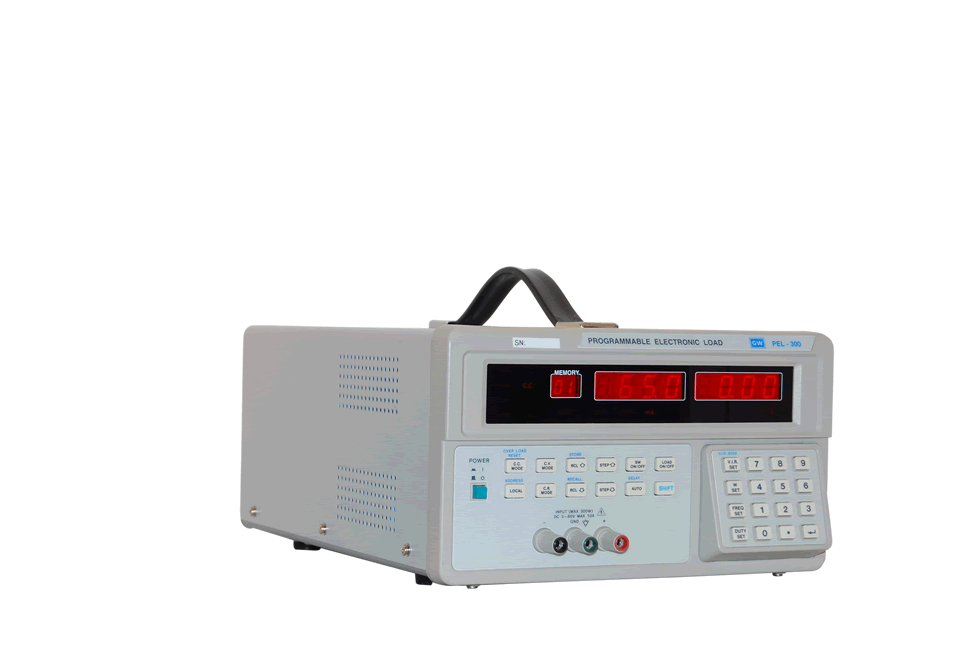

Instek PEL-300 Programmable Electronic DC Load

Instek PEL-300 Programmable Electronic DC Load, 300 Watts
Enlarge Image
Instek PEL-300 Programmable Electronic DC Load, 300 Watts Instek PEL-300 Programmable Electronic DC Load, 300 Watts Instek PEL-300 Programmable Electronic DC Load, 300 Watts
Instek PEL-300
Request Quote Print Page
Manual Datasheet
60V, 60A, 300W DC Programmable Load

Instek PEL-300 Features
  • Simple operation with smart push buttons
  • High resolution (20mV, 20mA, 0.33mΩ)
  • With high voltage, current and power overload prevention functions
  • Easy access to maximum 100 files
  • Voltage range: 3 ~ 60V
  • Current range: 6mA ~ 60A
  • Maximum power: 300W
  • Operational modes: constant voltage (CV), constant current (CC), and constant resistance (CR)
  • Self-testing and auto software calibration functions
  • Meets UL CSA IEC requirements
