NH Research 4700 Series DC Loads

Rent NH Research 4700 Series DC Loads
Request Quote Print Page
Datasheet
Model Power (kW) Max Current (A) Voltage (V) 4700-1 1 200 1 - 120 4700-2 2 400 4700-3 3 600 4700-6 6 1200 4700-12 12 2400 4700-18 18 3600 4700-24 24 4800 4700-36 36 7200 " />

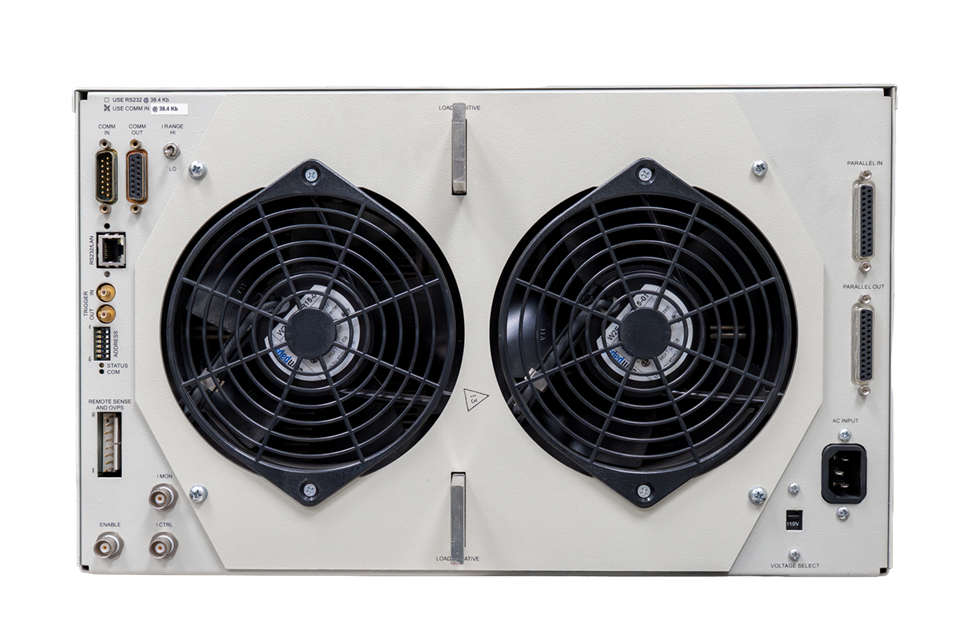

The NH Research 4700 LXI Series Electronic Loads are designed for testing applications that require high-power and high-current plus measurement of UUT dynamic performance. The Loads provide exceptional reliability combined with the inherent simplicity and safety of air cooling. The 4700 Loads are controlled through either a manual touch-panel, a LabVIEW soft-panel or an emPower™ Test Executive enabled automatic test station. Typical power conversion products to be tested include higher-power DC supplies, telecom rectifiers, fuel cells and batteries.


Features:

  • 120V, 1kW/200A to 36kW/7200A
  • 18 Voltage, Current, Power and Timing Measurements

Specifications:

Model Power (kW) Max Current (A) Voltage (V)
4700-1 1 200 1 - 120
4700-2 2 400
4700-3 3 600
4700-6 6 1200
4700-12 12 2400
4700-18 18 3600
4700-24 24 4800
4700-36 36 7200
