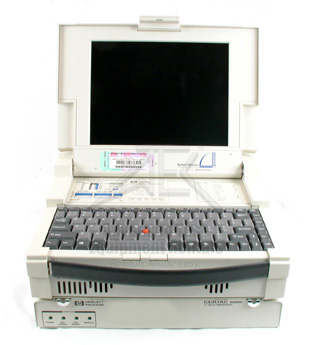

HP Agilent J2300C WAN Internet Advisor
Enlarge Image
Keysight J2300C
Request Quote Print Page
Manual J2300C Datasheet Specifications
Internet Advisor WAN
Keysight J2300C Features
  • Complete protocol analysis for WAN testing with a powerfull and rugged personal computer.
  • Monitor all major WAN communication protocols from 50 b/s to 2 Mbps
  • Protocols: frame relay, ISDN, X.25, HDLC, SDLC, SNA, async PPP and encapsulated LAN protocols running over the wide area network
  • All major WAN interfaces built in: RS-232C / V.24, RS-449 / 422 / 423, V.10/V.11 and V.35
  • Full RS-232C/V.24 Breakout Box
  • Data Rates for All Monitoring Simulation and BERT: any speed from 50 b/s to 2.048 Mb/s
  • Data Analysis Memory: 768 KB capture buffer, 128 KB nonvolatile RAM and 1.44 MB floppy.  In addition, circular store data to hard disk
  • Extensive Data Filtering Capability
  • Full Function Bit Error Rate Tests
  • Bit Error Rate Testing (BERT): simultaneously measure bit errors; block errors, errored seconds, and G.821 results; available time, errored seconds, degraded minutes, severely errored seconds, and unavailable time
  • Prewritten tests for major protocols including LAN traffic over WAN
  • Full Pentium Personal Computer with Window 95
    • 133 MHz processor
    • 3 GByte hard drive
    • 1.44 Mbyte floppy disk, pointing device, serial & parallel ports
    • Two PC card (Type I/II) slots for modem or NIC (network interface card)
    • 640 x 480 VGA 10.4" color active matrix display
  • Optional Slide in Modules: ISDN BRI and PRI, T1, DS-1 / E1, DS-3 / E3 and OC-3c / STM1.
  • Optional Undercradles: Ethernet, switched Ethernet, Fast Ethernet, Gigabit Ethernet, FDDI and token-ring LAN


Side Plug-Ins:
  • J2294C CEPT E1 DB9/RJ45 bala
  • J2296B ISDN PRI (E1)
  • J2298B ISDN PRI (T1)
  • J2904B ISDN BRI S/T
  • J2905B ISDN BRI S/T/U
  • J2909A DS3/E3 ATM Module
  • J2912A OC-3c/STM-1 ATM
  • J2912B OC-3c/STM-1 ATM


  • J2309A Ethernet/Token Ring
  • J3444A LAN Advisor 10/100 Ethernet
