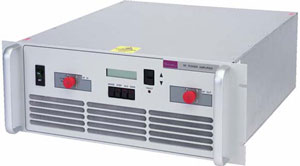

Ophir 5020
Request Quote Print Page
Datasheet
The Ophir 5020 Broadband High Power RF Amplifier 500 MHz - 1000 MHz is a 200 Watt broadband amplifier that covers the 500 – 1000 MHz frequency range. This small and lightweight amplifier utilizes Class A/AB linear power devices that provide an excellent 3rd order intercept point, high gain, and a wide dynamic range. Due to robust engineering and employment of the most advanced devices and components, this ampl if ier achieves high efficiency operation with proven reliability.


Specifications:


Frequency Range: 500 – 1000 MHz
Saturated Output Power: 200 Watts rated
Power at P1dB: 100 Watts Minimum
Small Signal Gain: +53 dB min
Small Signal Gain Flatness: +/- 1.5 dB max
IP3: +56 dBm
Input VSWR: 2:1 max
Harmonics: -20 dBc min @ 100 Watts
Spurious Signals: < -60 dBc min @ 100 Watts
