Tektronix CSA907A 700 MHz Bit Error Rate Test Set

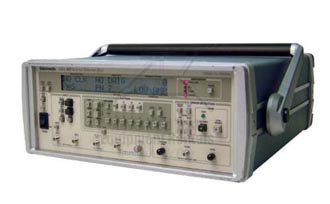

Tektronix CSA907A Error Rate Tester
Enlarge Image
Tektronix Test Equipment CSA907A
Request Quote Print Page

700 Mb Bit Error Rate Tester (BERT)

Tektronix Test Equipment CSA907A Specs
Pattern Generator
  • Frequency Range

Error Detector
  • Internal Clock Source: 150 Kb/s to 700 Mb/s
  • External Clock: 150 Kb/s to 700 Mb/s
    • Freq. Resolution (Internal Clock): 1 kHz
    • Clock Output Amplitude: 500 mV to 2.0 Vp-p
    • Clock Output Offset: -2.0 V to 1.8 V
    • Data Output Amplitude: 500 mV to 2.0 Vp-p
    • Data Output Offset: -2.0 V to 1.8 V
    • Data Delay Range: ±4 ns
    • Data Delay Increments: 20 ps
    • Clock Delay: ±4 ns
    • PRBS Patterns (2n -1): 7, 15, 17, 20, 23
    • Frequency Range with Burst Mode: 150 Kb/s to 700 Mb/s
    • Clock Input Levels (max): 500 mV to 6.0 Vp-p
    • Clock Input Terminations: GND, -2 V, +3 V or floating
    • Clock Input Threshold: 3.00 to +4.5 V
    • Data Input Levels (max): 500 mV to 6.0 Vp-p
    • Data Input Threshold: 3.00 to +4.5 V
    • Data Input Terminations: GND, -2 V, +3 V or floating
Tektronix Test Equipment CSA907A Applications
  • LAN/SONET/SDH Component Development
  • Satellite System Training
  • Digital Transmission System Design
  • Fiber Channel Testing
  • Uncompressed Digital Video
  • High-speed ATM Margin Testing
