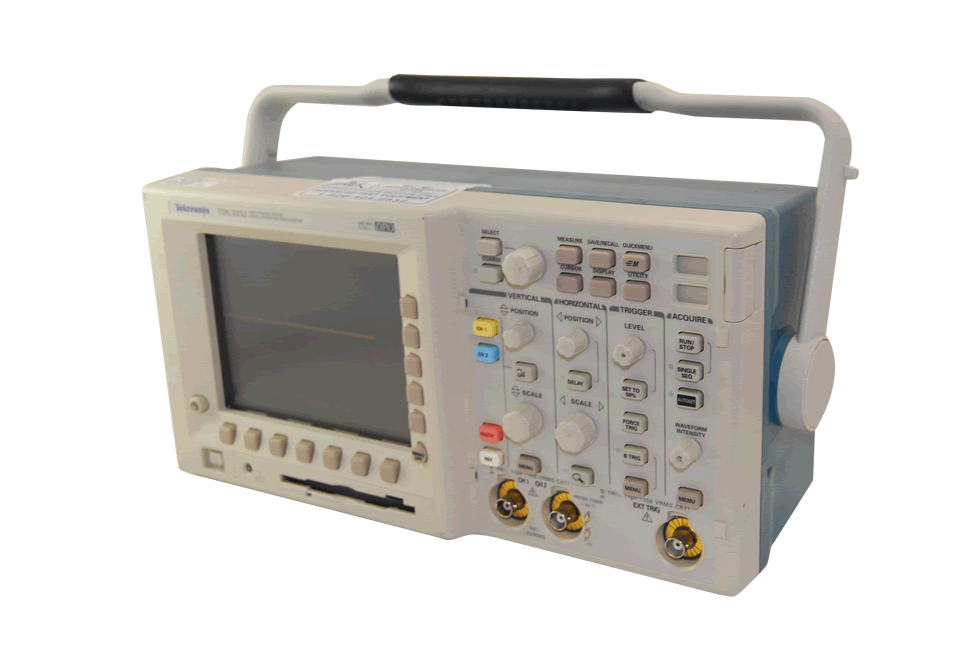

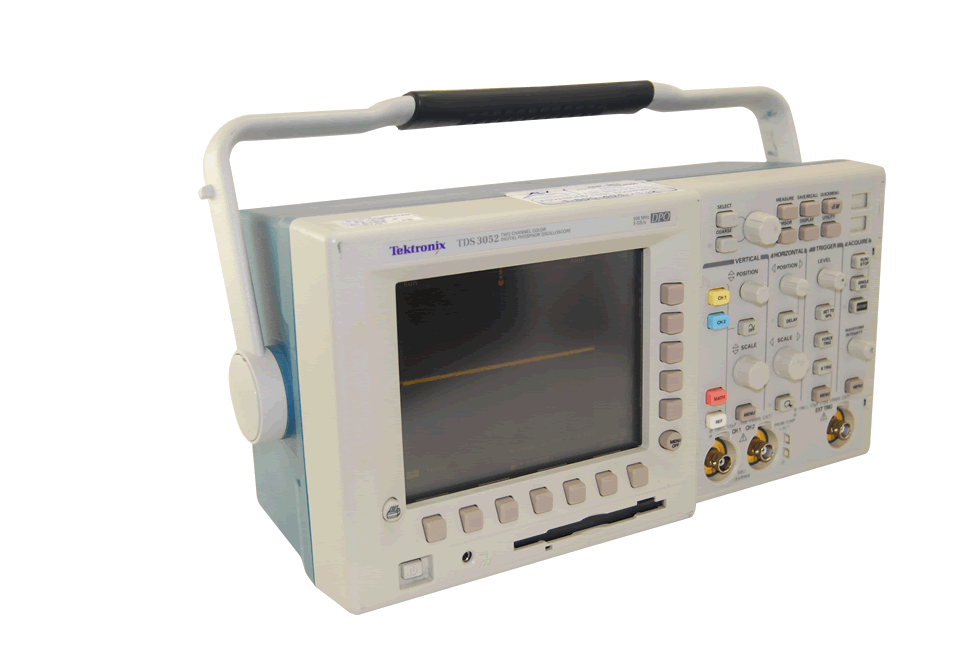

Tektronix TDS3052 Digital Phosphor Oscilloscope 500 MHz, 5 GS/s

Rent Tektronix TDS3052 Digital Phosphor Oscilloscope 500 MHz, 5 GS/s
Enlarge Image
Rent Tektronix TDS3052 Digital Phosphor Oscilloscope 500 MHz, 5 GS/s Rent Tektronix TDS3052 Digital Phosphor Oscilloscope 500 MHz, 5 GS/s Rent Tektronix TDS3052 Digital Phosphor Oscilloscope 500 MHz, 5 GS/s
Tektronix Test Equipment TDS3052
Request Quote Print Page
Manual Datasheet
The Tektronix TDS3052 has been replaced by the Tektronix TDS3052B.
Click here to learn more...


The Tektronix TDS3052 Digital Phosphor Oscilloscope 500 MHz, 5 GS/s provides you with the performance to visualize fast-changing signals in a compact, battery-capable design. With dedicated front-panel controls and 25 automatic measurements, the Tektronix TDS3052C is easy to use so you spend less time re-learning how to use your oscilloscope and more time on the task at hand.



Features:

  • Digital real-time sampling
  • Digital phosphor display
  • Advanced triggering
  • Dedicated front-panel controls
  • Front-panel USB host port


Specifications:
Bandwidth 500 MHz
Channels 2
Sample Rate on Each Channel 5 GS/s
Maximum Record Length 10 K points
Vertical Resolution 9-Bits
Vertical Sensitivity, 50 Ω 1 mV/div to 1 V/div
Vertical Accuracy ±2%
Max Input Voltage, 50 Ω 150 VRMS with peaks at ≤400 V
Position Range ±5 div
Bandwidth Limit 20 MHz, 150 MHz
Input Coupling AC, DC, GND
Input Impedance 1 MΩ in parallel with 13 pF or 50 Ω
Time Base Accuracy ±20 ppm over any 1 ms time interval
