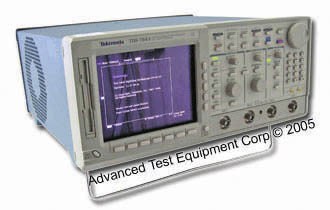

Tektronix TDS784D Digital Phosphor Oscilloscope 1 GHz, 1 GS/s

Rent Tektronix TDS784D Digital Phosphor Oscilloscope 1 GHz, 1 GS/s
Enlarge Image
Request Quote Print Page
Manual Datasheet

The Tektronix TDS784D Digital Phosphor Oscilloscope 1 GHz, 1 GS/s is the first in the TDS family of Digital Phosphor Oscilloscopes (DPOs) designed to keep pace with current and evolving needs in advanced electronic design and debug. DPOs deliver a new level of insight that makes dealing with complex signals elementary – a new level of insight that must be seen to be believed.


Features:


  • 1 ns Peak Detect
  • Channel Deskew
  • Record Lengths to 8M Points
  • Floppy Disk Storage
  • Advanced Triggering
  • Iomega Zip™ Drive Compatible
  • FFT and Advanced Math
  • Histograms on DPO and Normal Waveform Acquisitions
  • Histogram Statistics
  • Limit Test
  • FastFrame™ Time Stamp
  • Full GPIB Programmability



Specifications:


Bandwidth 1 GHz
# Channels 4
# Samplers 4
Max Real-time Sample Rate
1 channel 4 GS/s
2 channels 2 GS/s
3-4 channels 1 GS/s
Equivalent-time Sample Rate 250 GS/s max.
Sensitivity 1 mV/div to 10 V/div (1 meg ohm mode), 1 mV/div to 1 V/div (50 Ω mode
DC Gain Accuracy ±1.0%
(±0.7% typical
Effective Bits (typical) 5.5 (1 GHz @ 4 GS/s)
9.7 with Hi-res (1 MHz @ 10 MS/s)
Vertical Resolution 8-Bits (256 levels on 10.24 divisions), >11-Bits with averaging, >13-Bits typical with Hi-res
Position Range ±5 divisions
Offset Range +/–1 V from 1 mV to 100 mV/div, +/–10 V from 101 mV to 1 V/div, +/–100 V from 1.01 V to 10 V/div
Analog Bandwidth Selections 20 MHz
250 MHz, full
Input Coupling AC, DC, GND
Input Impedance Selections 1 Ω in parallel with 10 pF, or 50 Ω (AC and DC coupling)
AC-coupled
Low Frequency Limit
≤ 10 Hz when AC 1 MΩ coupled.
≤ 200 kHz when AC 50 Ω coupled.
Channel Isolation >100:1 at 100 MHz and >30:1 at the rated bandwidth
