Keysight N4690D-003 ECal Microwave Electronic Calibration Module, 18 GHz
- Precision 2-port microwave ECal module with high accuracy
- Broad choice of solutions (frequency and connector types)
- Frequency coverage from DC to 67 GHz
AH Systems SAC-18G Meter Low-Loss Cable
- Frequency Range: DC - 18 GHz
- Impedance: 50 Ω
- Time Delay: 1.2 nS/ft
Noiseken CA-806 Coupling Adapter
- Input voltage: 2000V max.
- Input pulse width: 50ns - 1μs
- Terminator: Built-in 50 ohm terminator
Amplifier Research DC3010A Dual Directional Coupler 10 kHz - 1 GHz
- High power, ultra-broadband dual directional coupler
- Excellent performance characteristics over a range of more than 14 octaves
- Frequency range of 10 kHz to 1 GHz
AH Systems SAC-40G Low-Loss Cable | DC - 43 GHz
- Frequency range from DC to 40 GHz
- Individually calibrated
- Precision N, SMA, 2.9 mm type connectors
Narda 769-20 High Power Coaxial Attenuator | DC - 6 GHz
- Designed to meet environmental requirements of MIL-A-3933
- Frequency range of DC – 6 GHz
- Type N connector
Bird 8329 High-Power Oil-Dielectric Attenuator

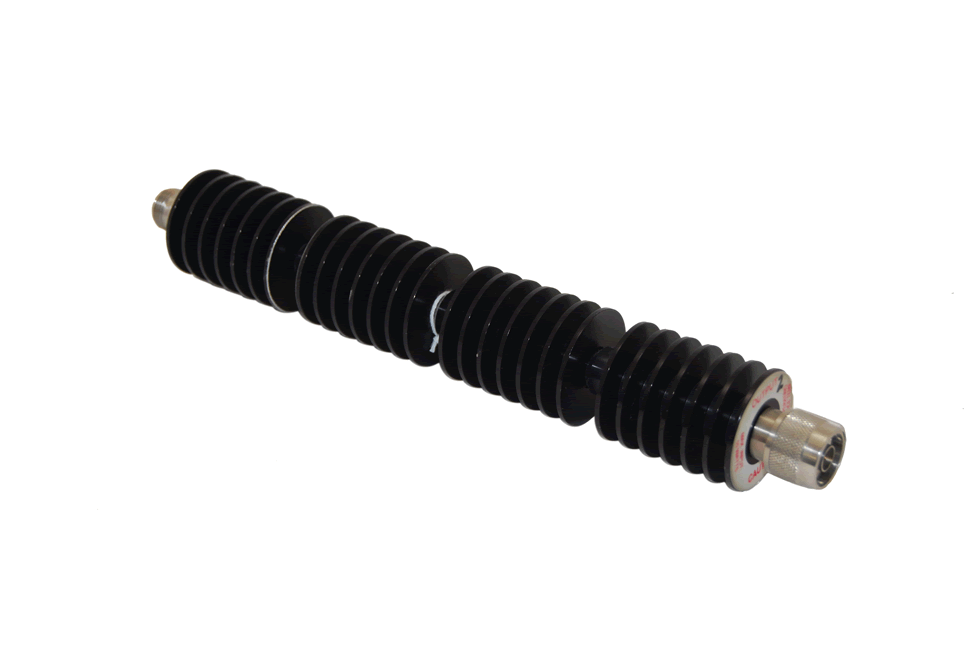

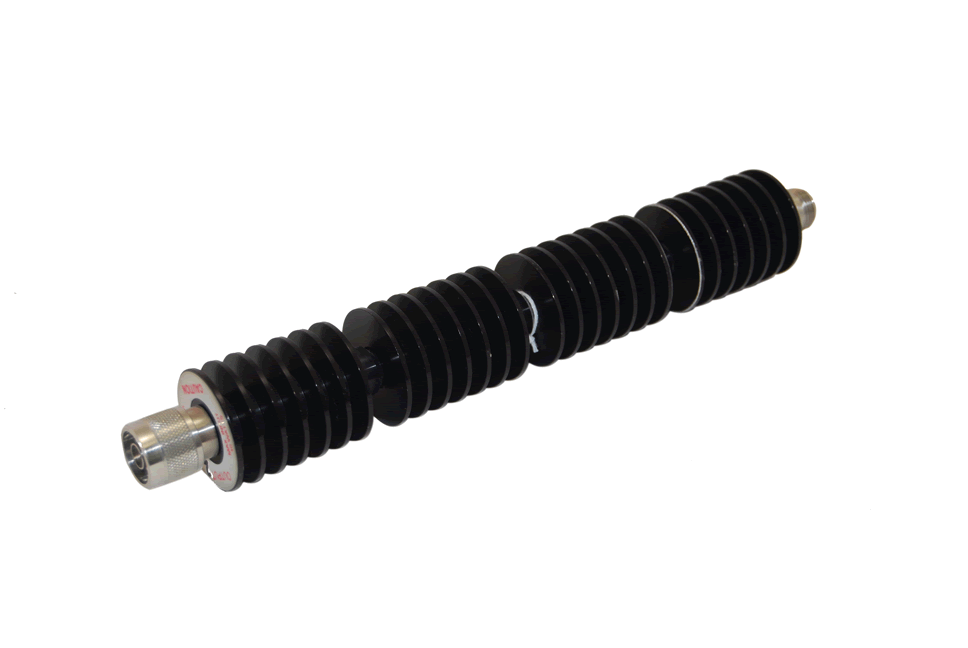

Weinschel 48-10-34 High Power Coaxial Attenuator
- Test data plots of attenuation and SWR from 50 MHz to 18 GHz supplied
- Black, aluminum body with stainless steel connectors and gold plated beryllium copper contacts
- dB value of 10 dB
Amplifier Research DC6280AM1 Dual Directional Coupler
- Frequency range: 80 - 1000 MHz
- Insertion loss of .015 dB maximum
- Coupling Factor 63 dB ± dB (flatness included)
Bird 8890-300 High-Power Oil-Dielectric Load
Keysight 8498A 18 GHz Coaxial Fixed Attenuator
- High accuracy
- Low SWR
- Broadband frequency
Werlatone C5070-741 Dual Directional Coupler, 800 MHz - 2800 MHz
Narda 3022 | 1.0 GHz – 4.0 GHz
- Exceptionally high directivity for reflectometry measurements
- Broadband frequency coverage
- Bilateral Male and Female output ports
Narda 369BNF High Power Termination | 0.7 GHz - 18 GHz
- Low VSWR
- Broadband
- High power, 500 W
Keysight 4437A Attenuator, DC - 1 MHz
Keysight 11583C Coaxial Attenuators Set
- Multiple dB attenuators included in one set
- APC-3.5 connectors
- Maximum frequency: 26.5 GHz
Thermo Keytek CM-I/OCD CDN
- 4.4kV max surge voltage
- 200V Signal Line voltage
- 20V and 220V built-in clamps
Bird 8860 Termaline Semiconductor Load Resistor
- DC to 28 MHz frequency range
- -40 to +45 °C operating temperature range
- 1000 W power rating
Bird 8404 Termaline Load Resistor
Bird 8401 Coaxial Load 1 GHz, 600 W, 50 ohm
- Rugged portable Bench load for medium power base station RF testing up to 1 GHz
- Oil-assisted convection cooling for safe, continuous operation up to 600W full rated power
- Quick Change (QC) connectors to minimize the need for adapters when making critical measurements
Bird 8329-300 High-Power Oil-Dielectric Attenuator
- 2 kW power rating
- Power attenuator
- Self-contained
Bird 8327-300 Tenuline Attenuator
Bird 82A TERMALINE Coaxial Load Resistor
Bird 8135 Termaline Coaxial Load Resistor 4000 MHz, 150 W
- Industry standard portable Bench load for general purpose mobile and base station RF testing up to 4 GHz
- Oil-assisted convection cooling for safe, continuous operation up to 150W full rated power
- Quick Change (QC) connectors to minimize the need for adapters when making critical measurements
Keysight 778D Dual Directional Coupler, 100MHz - 2GHz
- Economic coupler
- High directivity
- Frequency range of 0.10 to 2.0 GHz
