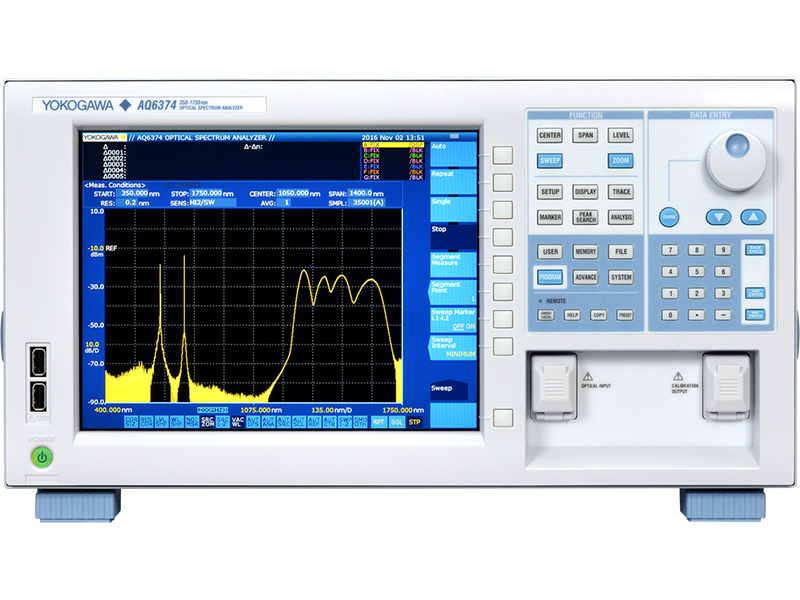

Yokogawa AQ6374 Optical Spectrum Analyzer

The Yokogawa AQ6374 Optical Spectrum Analyzer covers a wavelength range of 350–1750 nm for visible and near-infrared applications. It provides ±0.05 nm wavelength accuracy at 633 and 1523 nm, resolution settings from 0.05 to 10 nm, and sensitivity down to −80 dBm. The analyzer supports fiber inputs up to 800 µm core size, includes built-in color analysis and optical device testing functions, and offers sweep times as fast as 0.5 seconds. Interfaces include GP-IB, Ethernet, USB, VGA, trigger I/O, and analog output.

Product Info Related Products

Wavelength Range	350 – 1750 nm
Wavelength Accuracy	±0.05 nm at 633 & 1523 nm, ±0.20 nm full range
Wavelength Repeatability	±0.015 nm (1 min.)
Resolution Settings	0.05, 0.1, 0.2, 0.5, 1, 2, 5, 10 nm
Sampling Resolution	0.002 nm minimum
Dynamic Range	60 dB (Peak ±1 nm, res. 0.05 nm at 633/1523 nm)
Sensitivity	-80 dBm (900 – 1600 nm) -70 dBm (400 – 900 nm)
Safe Input Power	+20 dBm (550 – 1750 nm) +10 dBm (400 – 550 nm)
Analysis Functions	Color analysis, WDM, spectral width, filter analysis, SMSR, power
Sweep Time	0.5 s minimum (NORM_AUTO mode)
Fiber Compatibility	SM, MM (50/125, 62.5/125), large core up to 800 µm
Optical Connectors	FC or SC (adapter required)
Display	10.4-inch color touchscreen

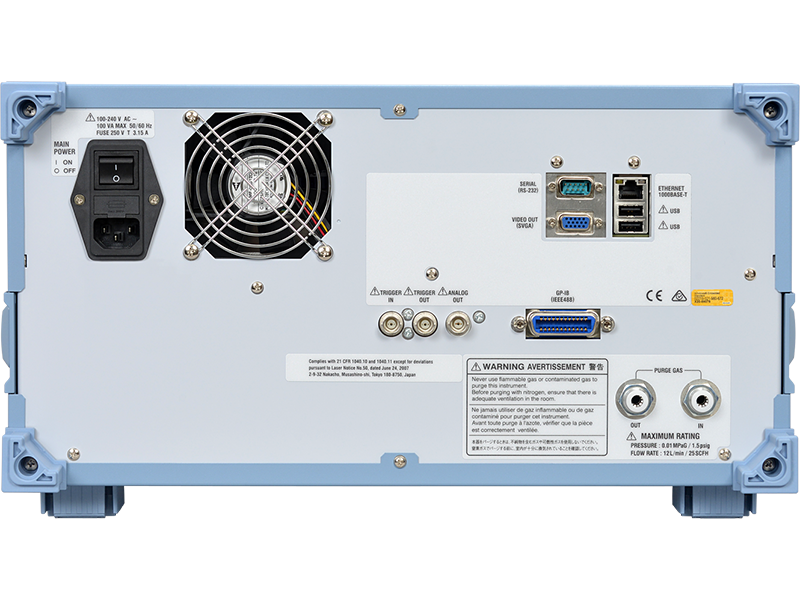

Interfaces	GP-IB, Ethernet, USB, VGA output, trigger I/O, analog output

Suitable to measure high power as well as low power sources used in different fields of application.
The ±0.05 nm wavelength accuracy can be maintained by the calibration using the built-in reference light source or an external light source including HeNe laser and Argon light source.
The number of wavelength samples has been doubled. One sweep can measure a wider wavelength range at high resolution.
Change display conditions, such as center wavelength and span, by clicking and dragging the mouse.
Enlarge your area of interest instantly and move it at will.
No need for another measurement to modify the display conditions.

Wavelength loss characteristics of optical fibers
Characterization of broadband light sources
Characterization of lasers from visible light to optical communications wavelengths

SKU: YOKO-AQ6374-PKG01
