The Advanced Amplifiers AA-13G-125 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 1.0 - 3.0 GHz and generates 125 W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-13G-125 has a power gain of 51 dB minimum and operates with an input of 100 - 240 VAC (500 W).

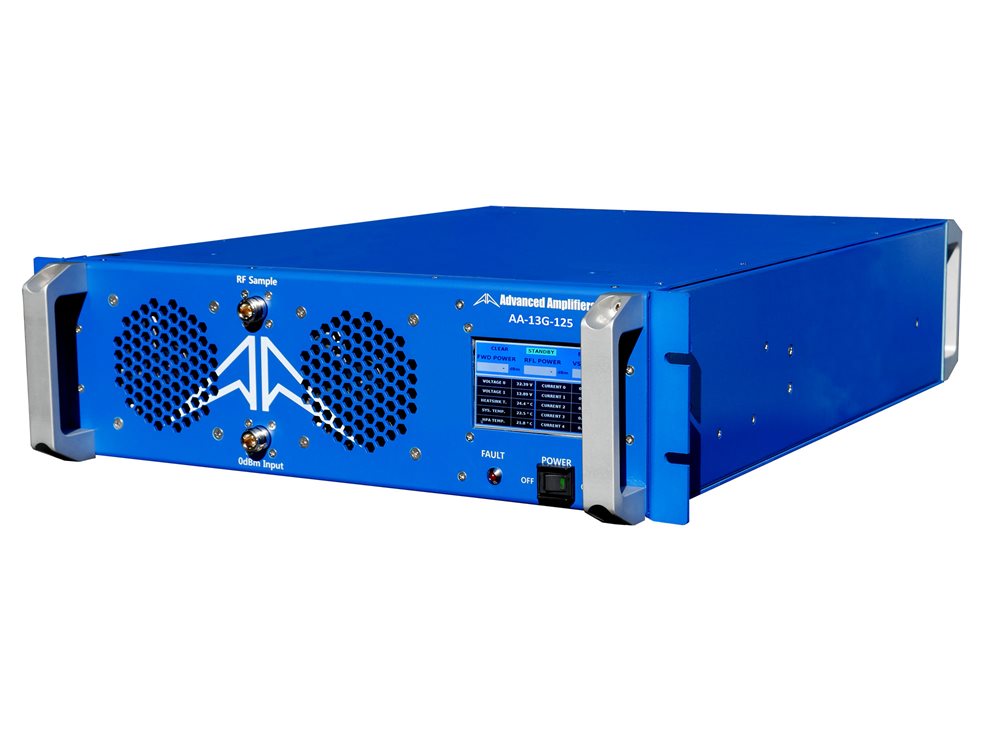

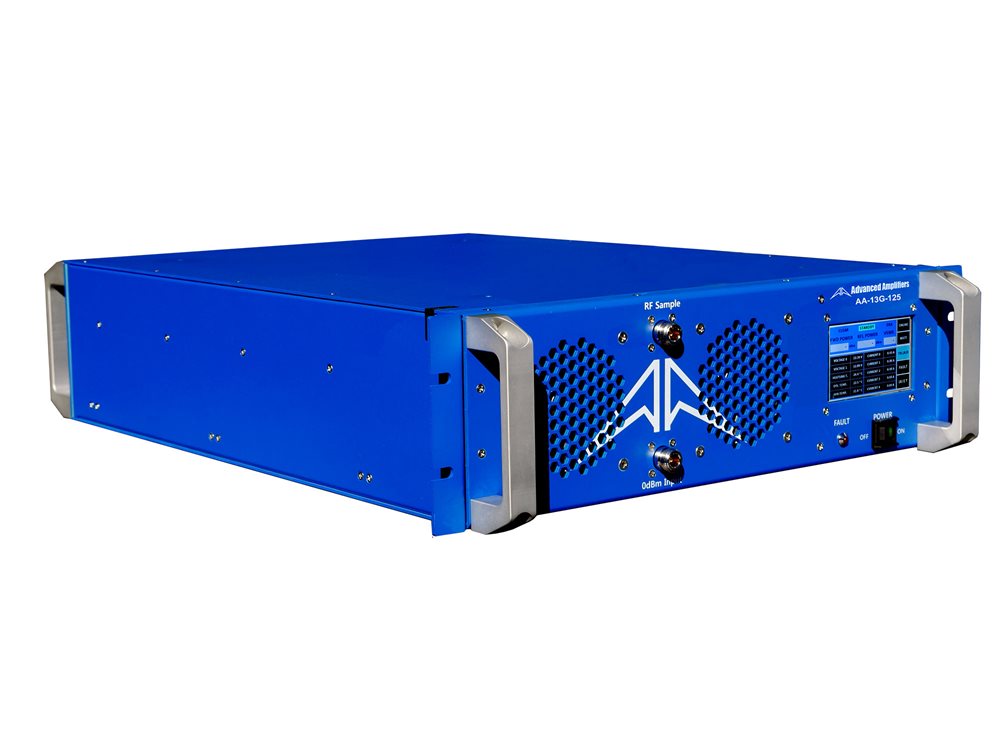

The AA-13G-125 is lightweight and has a low-profile (3U) build compared to standard amplifiers with the same specifications, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifiers AA-13G-125 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting. Despite the light frame of this amplifier, it is durable and reliable enough for the most difficult of projects.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Rack mounted system
Class AB linear GaN design
Instantaneous wide bandwidth
Suitable for all single channel modulation standards
Built-in protection circuits
High reliability and ruggedness

Specifications

Parameter	Specification	Notes
Operating Frequency Range	1.0 - 3.0 GHz
Power Output @ Psat	125 Watt Min	CW
Power Output @ PldB	50 Watt Min
Power Gain	51 dB Min
Power Gain Flatness	3 dB p-p Max	Constant input power
Input/ Output Return Loss	10 dB Min	Relative to 50 Ohm
2-Tone Intermodulation (IMD)	-30 dBc Max	41dBm/Tone, Δ = 1MHz
Harmonics	-20 dBc Typ	At rated output power
Spurious	-60dBc Max	Non-harmonics
Operating Voltage	100 - 240 VAC
Power Consumption	500 Watt	At rated Pout
Input Power Protection	+8 dBm Max	<10 Sec without damage
Load VSWR Protection	∞: 1	<1 minute at rated Pout
Operating Ambient Temperature	0 to +50 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	5 to 95 %	Non Condensation
Dimensions W x H x D	430 x 560 x 133 mm	3U - Without handles
Weight	20 kg.
RF Connectors In/Out	Type-N Female	Front Panel Standard

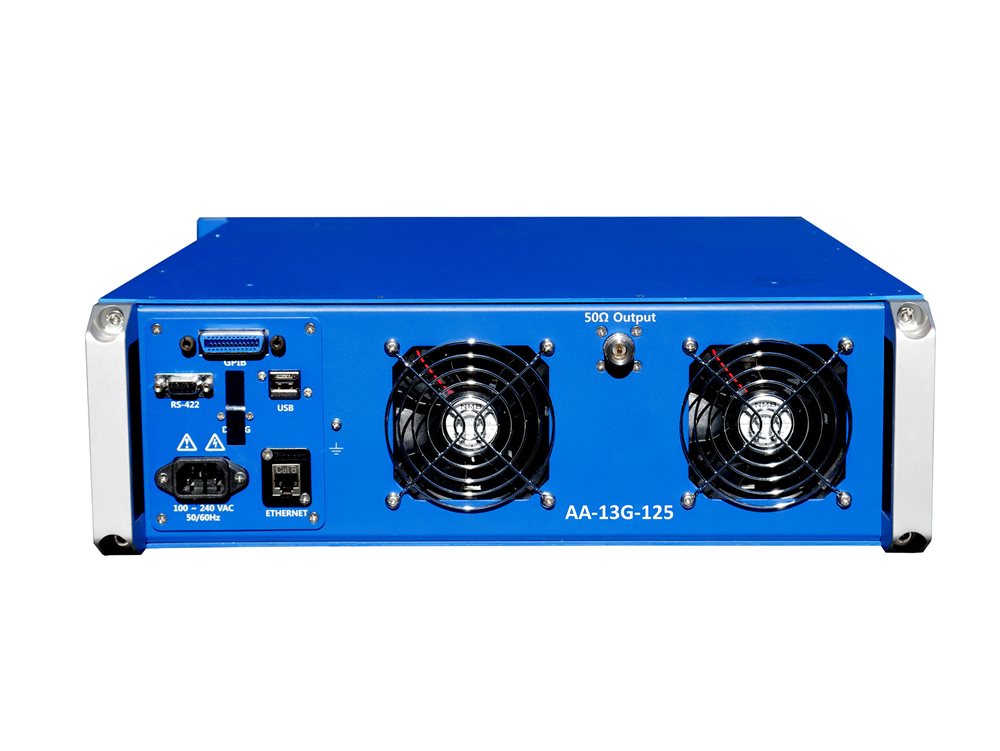

AC Power / Interface Connector	IEC 60320-C14 / 9-Pin D-Sub
Cooling	Built in Fan Cooling
OPTIONAL: Digital Monitor & Control FWD, REV, VSWR, GAIN, ALC, V & I, TEMP	Ethernet RJ-45 TCP/IP, RS422/485 Optional GPIB Interface	Optional Remote Bluetooth application
