Advanced Amplifiers AA-700M3G-30 Solid State Amplifier | 700 - 3000 MHz, 30 W

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery
Advanced Amplifiers AA-700M3G-30 Larger

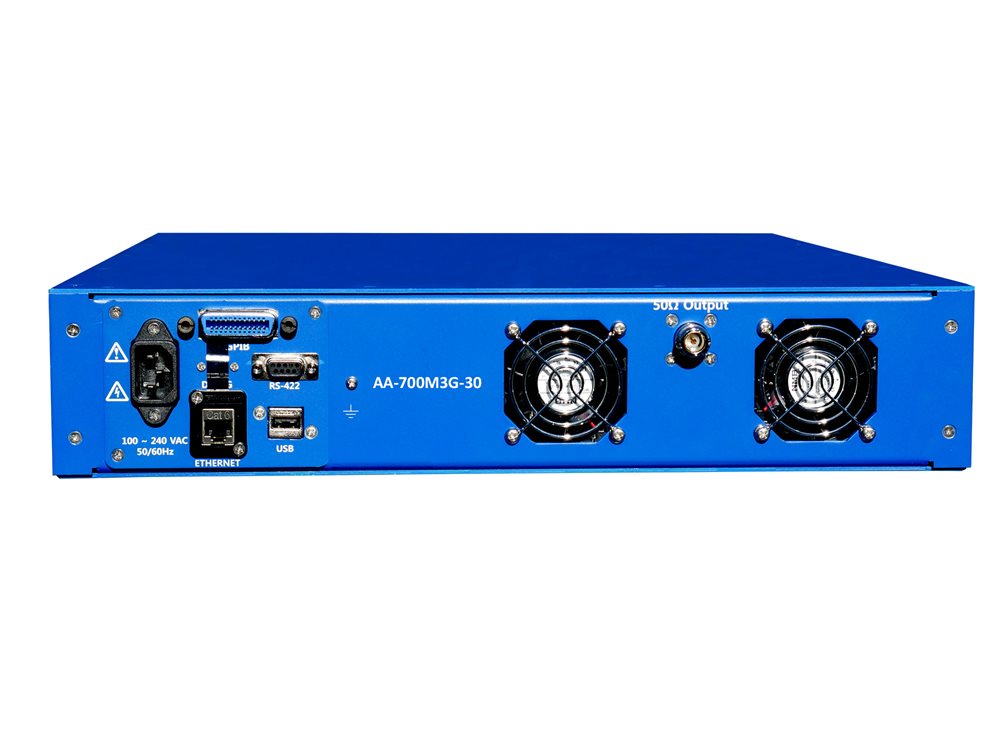

Advanced Amplifiers AA-700M3G-30 Solid State Amplifier | 700 - 3000 MHz, 30 W

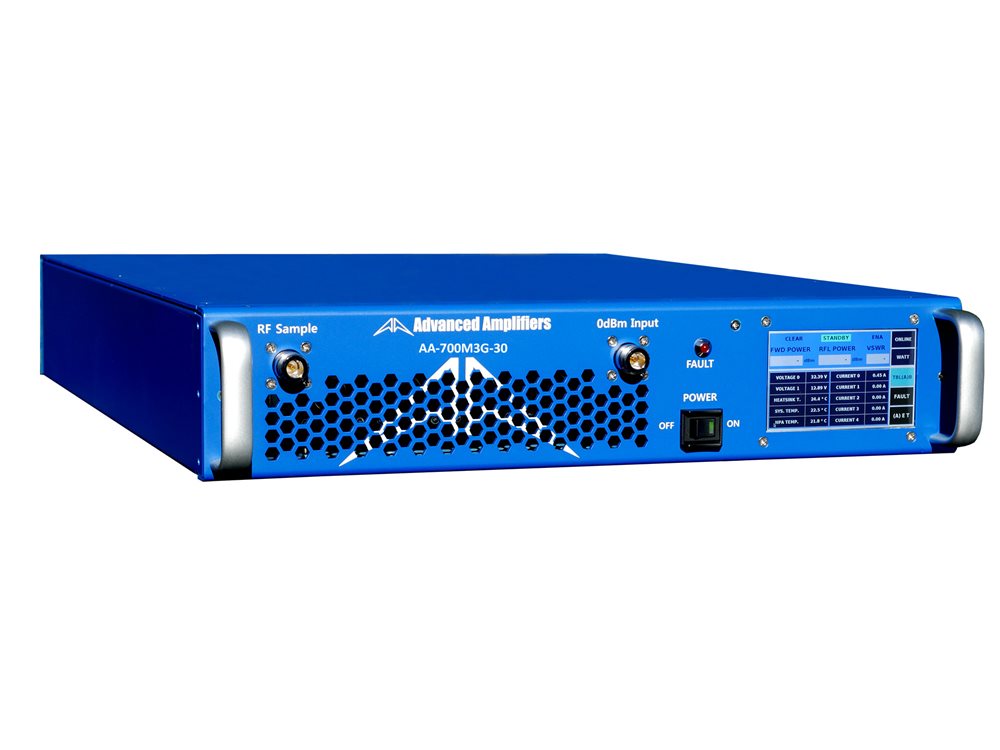

Advanced Amplifiers AA-700M3G-30 Solid State Amplifier | 700 - 3000 MHz, 30 W

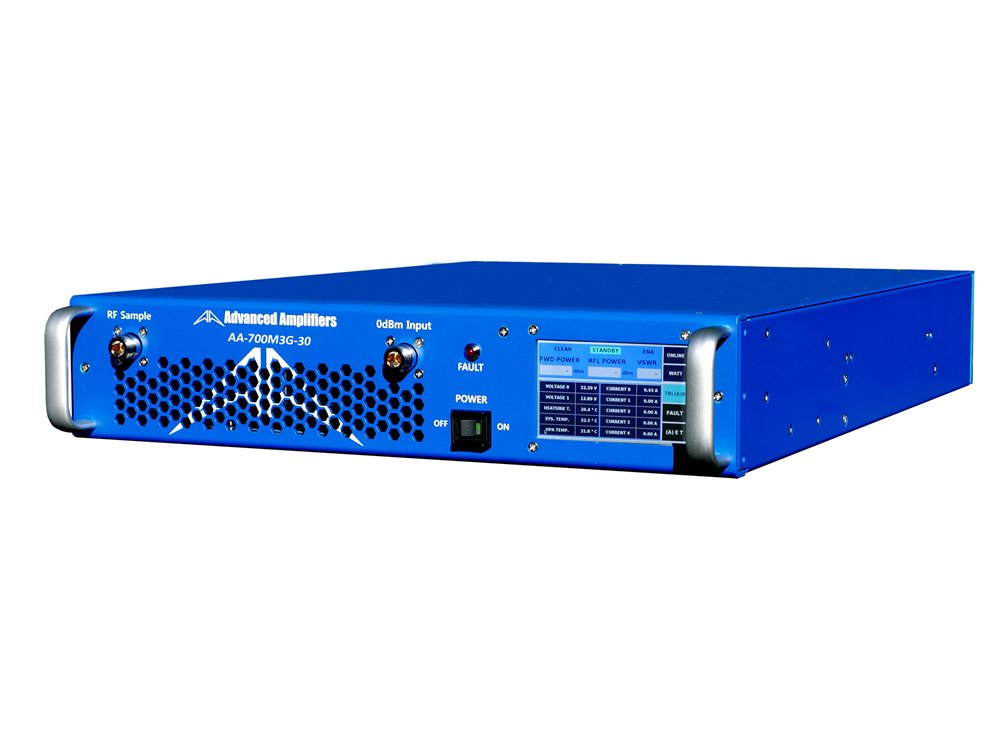

Advanced Amplifiers AA-700M3G-30 Solid State Amplifier | 700 - 3000 MHz, 30 W
Categories
  • RF Amplifiers
    RF Amplifiers
  • Solid State Power Amplifiers
    Solid State Power Amplifiers
  • CW Amplifiers
    CW Amplifiers
Documents
  • Datasheet
  • Print
  • Email
The Advanced Amplifiers AA-700M3G-30 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 700 - 3000 MHz and generates 30 W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-700M3G-30 has a power gain of 45 dB minimum and operates with an input of 0 - 260 VAC single-phase (300 W).

The AA-700M3G-30 is lightweight and has a low-profile (2U) build compared to standard amplifiers with the same specifications, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifiers AA-700M3G-30 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Rack mount system
  • Class AB linear GaN design
  • Instantaneous wide bandwidth
  • Suitable for all single channel modulation standards
  • Built-in protection circuits
  • Optional uP remote control & monitoring
  • High reliability and ruggedness
Specifications
Parameter Specification Notes
Operating Frequency Range 700 - 3000 MHz
Power Output 30 Watt Typ CW
Power Output @ PldB 24 Watt Min
Power Gain 45 dB Min
Power Gain Flatness 4.0 dB p-p Max
Input Return Loss 10 dB Min Relative to 50 Ohm
2-Tone Intermodulation (IMD) -30 dBc Typ 37dBm/Tone, Δ = 1MHz
Harmonics -20 dBc Typ
Spurious -60 dBc Max Non-harmonics
Operating Voltage 90 - 260 VAC
Power Consumption 300 Watt Max At Rated Pout
Max Input Power protection +10 dBm <10 Sec without damage
Load VSWR Protection ∞: 1 <1 minute Sec without damage
Operating Ambient Temperature 0 to +50 °C
Storage Temperature -40 to +85 °C
Relative Humidity 5 to 95 % Non Condensation
Dimensions W x H x D 430 x 88 x 562 mm 2U
Weight 10 kg.
RF Connectors In/Out Type-N Female Front Panel Standard
AC Power / Interface Connector IEC 60320-C14 / 9-Pin D-Sub
Cooling Built in Fan Cooling
OPTIONAL: Digital Monitor & Control
FWD, REV, VSWR, GAIN, ALC, V & I, TEMP
Ethernet RJ-45 TCP/IP, RS422/485
Optional GPIB Interface
Remote Bluetooth application
