Agilent / Varian 979 Helium Mass Spectrometer Leak Detector

Rent Agilent / Varian 979 Helium Mass Spectrometer Leak Detector
Enlarge Image
Agilent (formerly Varian) 979
Request Quote Print Page
Manual

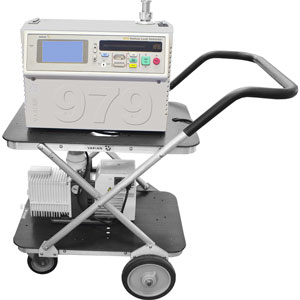

The Agilent / Varian 979 Helium Mass Spectrometer Leak Detector is a wide-range Helium Mass Spectrometer Leak Detector. It is comprised of a turbomolecular high vacuum pump, spectrometer tube, valve block, Vacuum Technologies’ Platform leak detector electronics, and an operator interface in a stylish, yet rugged housing. The 979 is available in several configurations such as a stand-alone, bench-mount unit or as a single or dual, dry or oil sealed mechanically pumped leak testing station on a cart.

Features:

  • Minimum detectable leak (Standard Sensitivity): 5 x 10-10 atm cc/sec helium
  • Minimum detectable leak (High Sensitivity):  5 x 10-11 atm cc/sec helium
  • Maximum Test Port Pressure 1 Primary Pump/2 Primary Pumps: 5 Torr/760 Torr
  • Test Cycle Control: Automatic

Applications:

  • Industrial Process Tools
  • Power Generation
  • High Energy Physics
  • Research & Development
  • Component Manufacturing
