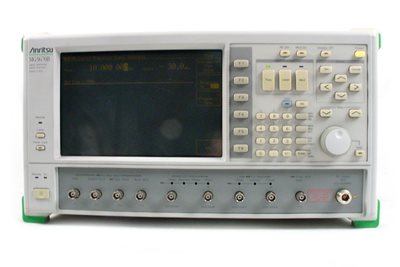

Anritsu MG3670B Digital Modulation Signal Generator

Larger

Categories

Vector Signal Generators (VSG)

Documents

Datasheet

The Anritsu MG3670B Digital Modulation Signal Generator features a frequency range of 300 kHz to 2.25 GHz. The Anritsu MG3670B model provides a stable and precise output as well as spectrum purity up to +13
dBm, even with modulation. In addition to testing receiver sensitivity and excess input, they can be used for testing IF stage performance and for evaluating device quality.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Frequency Range	300 kHz to 2250 MHz
Output Level Range	-143 to +13 dBm
Digital Modulation	Internal Modulation External Modulation: any modulation using I/Q input signal
Pulse Modulation Input	TTL level, BNC connector, polarity selectable
I/Q Signal Adjustment	offset, balance, phase (only output) of I/Q input/output signal
Reverse Power Protection	Maximum reverse input power: 50 W
Interface	GPIB

Anritsu MG3670B Communication Systems	Units
PHS, PDC, PDC_H, NADC, TFTS	MG0301C pi/4 DQPSK Modulation Unit
GSM, PCN, CT2	MG0302A GMSK Modulation Unit
DECT	MG0305A GFSK Modulation Unit
PACS, WCPE, PHS	MG0307A pi/4 DQPSK Modulation Unit
