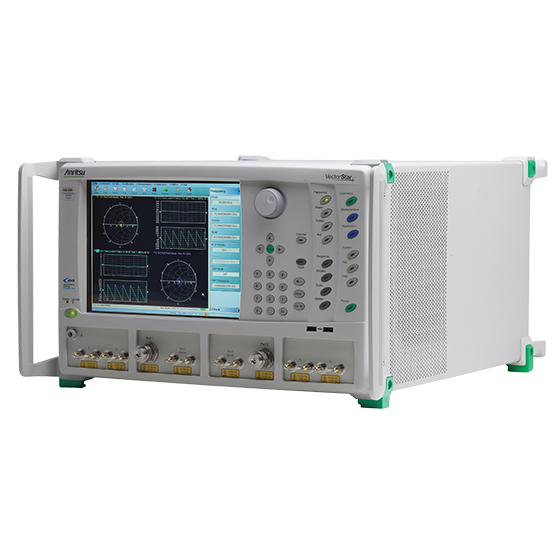

Anritsu MS4644B 10 MHz - 40 GHz VNA

The Anritsu MS4644B VectorStar VNA is a 2-port vector network analyzer from the MS4640B Series. With a frequency of 10 MHz to 40 GHz, easy-to-use applications, and more, the MS4644B is the ideal model for broadband network analysis solutions. This VNA is equipped with K(m) test ports, a dynamic range of 119dB and available with Time Domain Analysis.

Product Info Related Products

Model	MS4644B
Series	MS4640B Series
Frequency Range	10 MHz to 40 GHz
Dynamic Range	119 dB (up to 40GHz)
Output Power	15 dBm
Operating Temperature Range	0°C to +50°C (32°F to 122°F)
Relative Humidity	5% to 90% at +30°C, non-condensing
Ports	2-port
Port Type	K(male)
Dimensions (H x W x D)	267 x 426 x 502 mm (10.5 x 16.8 x 19.8 in)
Weight	<30 kg (<66 lb.)

High performance, broadband network analysis solutions
MS4644B: (Optional 70 kHz) 10 MHz to 40 GHz
VectorStar device
2-port, K(male) test ports
Part of the MS4640B Series

RF and Microwave Passive Component Testing and Troubleshooting
System Integration Application
Secure Area Applications
Wireless Power Transfer Applications

SKU: ANRI-MS4644B
