Chroma

Chroma 61809 Grid Simulator | 9 kVA, 0 - 350 V

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

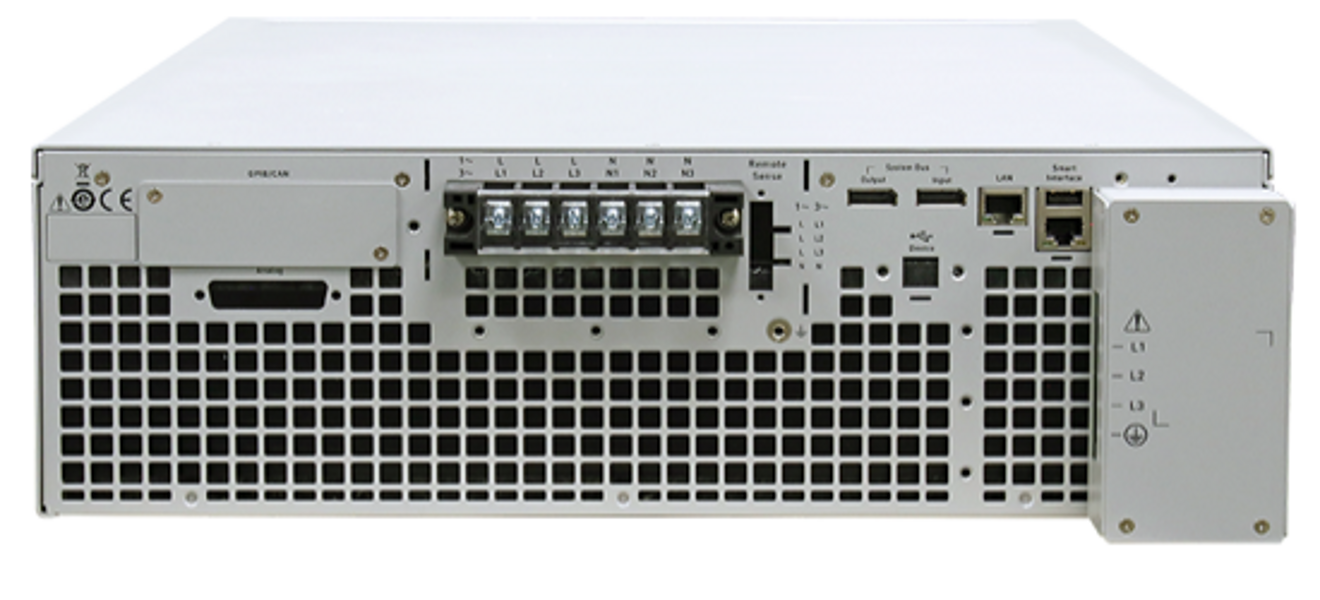

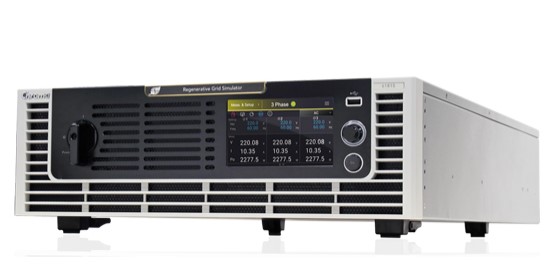

Chroma 61809 Grid Simulator | 9 kVA, 0 - 350 V Larger
Chroma 61809 Grid Simulator | 9 kVA, 0 - 350 V
Chroma 61809 Grid Simulator | 9 kVA, 0 - 350 V
Categories
  • Grid Simulators
    Grid Simulators
Documents
  • Datasheet
  • Print
  • Email
The Chroma 61809 Grid Simulator has an output power of 9 kVA and an output voltage of 0 - 350 V. With a user-friendly display, IST, PULSE, STEP mode functions, and more, the Chroma 61809 is the ideal model for a variety of testing requirements. The device has both 1-phase and 3-phase output modes. The Chroma 61809 Grid Simulator is part of the Chroma 61800 Series.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • An output power of 9 kVA
  • Intuitive touch panel interface
  • User-selectable single phase or three phase output
  • Specifically designed for EV, PV inverter and Smart Grid related test applications
  • Programmable slew rate settings for voltage and frequency
  • Programmable voltage and current limits
  • Turn on, turn off phase angle control
  • Synchronize TTL signal of voltage changing
  • LIST, PULSE, STEP mode functions for testing Power Line Disturbance (PLD) simulation
  • Harmonics, inter-harmonics waveform synthesizer
Specifications
Model 61809
Output Power 9 kVA
Output Voltage 0 - 350 V
Output Frequency 30 Hz - 100 Hz/DC
Output Phase 1 or 3 selectable
Harmonic Range Up to 50 Harmonic order @ 50/60Hz fundamental frequency
Power Accuracy 0.4%+0.4% F.S.
Protection OVP, OCP, OPP, OTP, FAN
Dimension (H x W x D) 132.8 x 428 x 700 mm (5.23 x 16.85 x 27.55 in)
Weight 50 kg (99.21 lb.)
Applications
Options
  • 61809: Regenerative Grid Simulator - 9 kVA
  • 61812: Regenerative Grid Simulator - 12 kVA
  • 61815: Regenerative Grid Simulator - 15 kVA
Accessories
Standards
