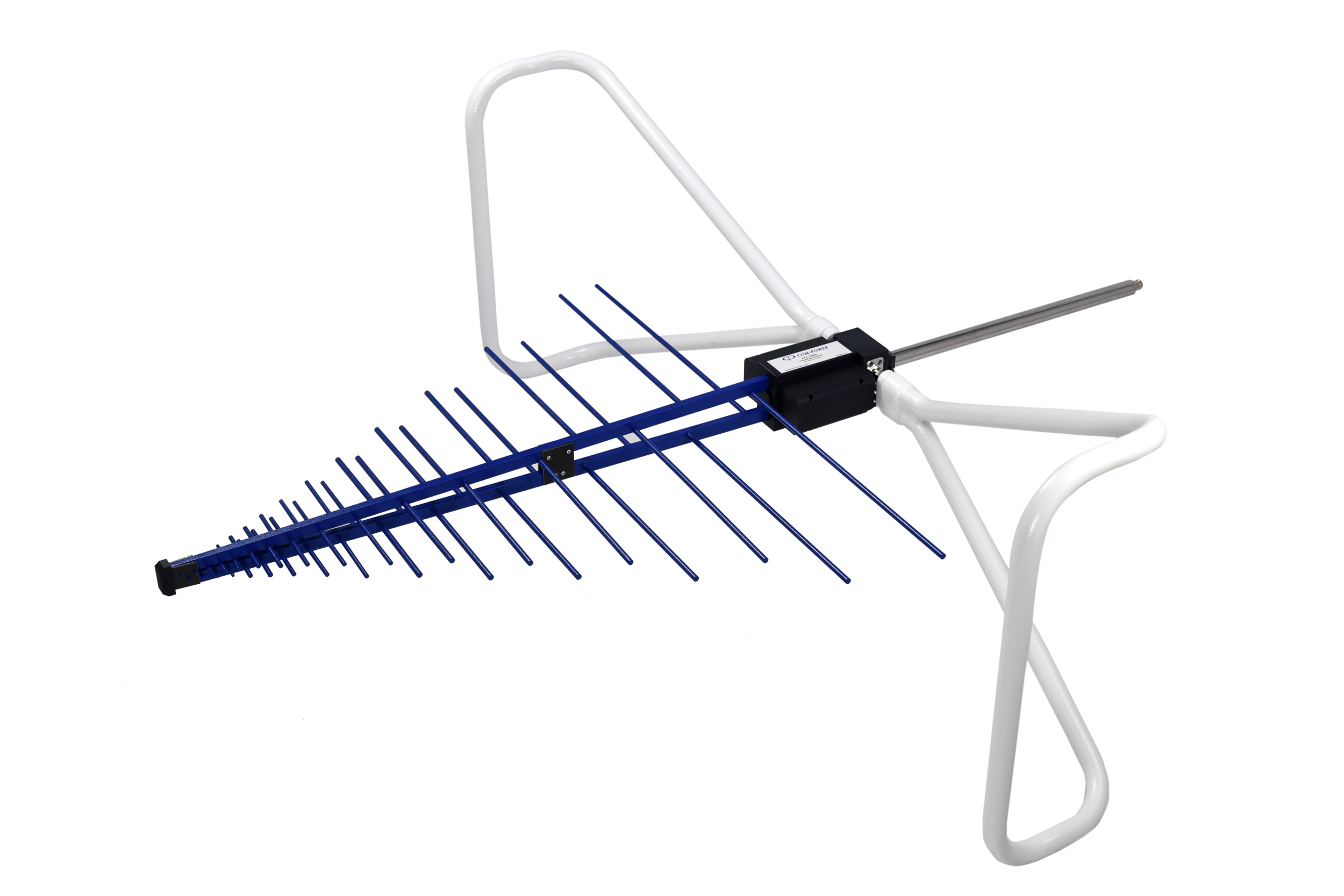

Com-Power ACL-6000

Biconilogical Antenna | 30 MHz - 6 GHz

The Com-Power ACL-6000 Biconilogical Antenna has a frequency range of 30MHz to 6GHz. This device is used for a variety of applications including product immunity tests, test site comparisons, shielding effectiveness tests of large enclosures, field monitoring, and site surveys. Additionally, it can meet the requirements of test standards such as ANSI C63.5 and CISPR 16-1-4.

Product Info Related Products

Frequency range	Receive/emission: 30MHz - 6GHz
Frequency range	Transmit/immunity: 80MHz - 6GHz
Maximum input power	~200W (Cont.)
Isotropic gain	-20... 7dBi
Connector	N-type (f)
Antenna symmetry	<±1dB
Nominal impedance	50Ω

Hybrid log-periodic / biconical design — combines a log-periodic structure with low-frequency elements integrated into the feed lines, providing the bandwidth advantages of both antenna types in one assembly without the dead bands of conventional antenna swaps.
Common-mode chokes installed — suppress common-mode currents flowing on the outer conductor of the coaxial feed/receive cable, reducing measurement uncertainty caused by cable-borne pickup.
Frequency-dependent power handling for immunity testing — supports input power levels that vary with frequency for radiated immunity testing across the full transmit band; refer to the maximum input power graph for exact values at each frequency.
Good cross-polarization performance — high cross-polarization rejection across the operating band minimizes measurement error caused by orthogonal-polarization field components.
Detailed pattern characterization — supplied with E-plane and H-plane radiation pattern data at 14 frequencies from 30 MHz to 6 GHz, supporting accurate field-uniformity calculations during chamber commissioning and immunity test setup.
Transmit and receive capability — functions as a receiving antenna for emissions testing and as a transmitting antenna for radiated immunity testing using the same hardware.
