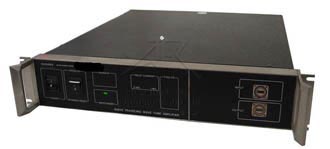

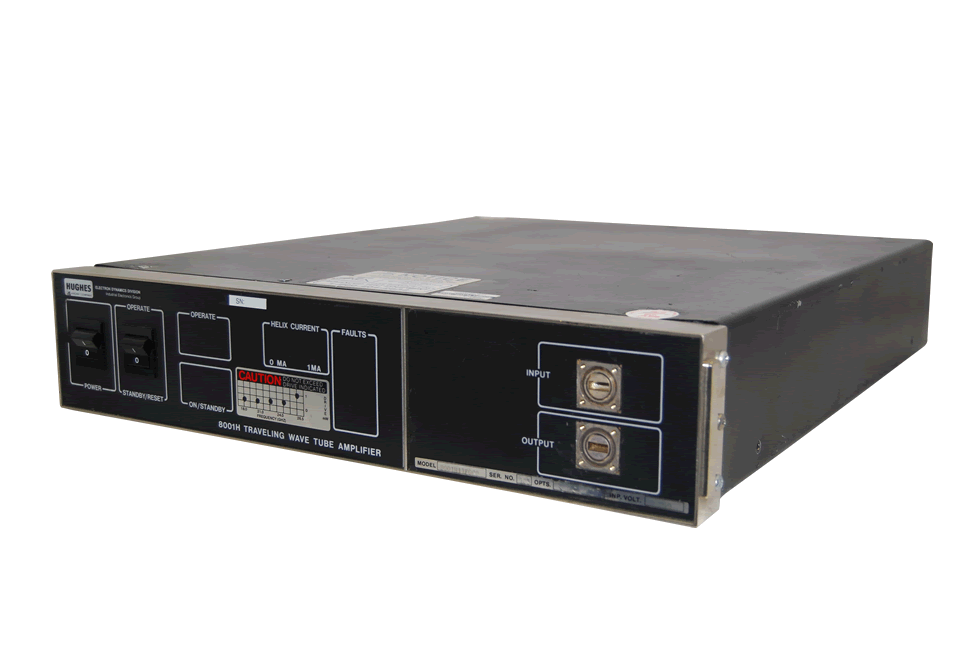

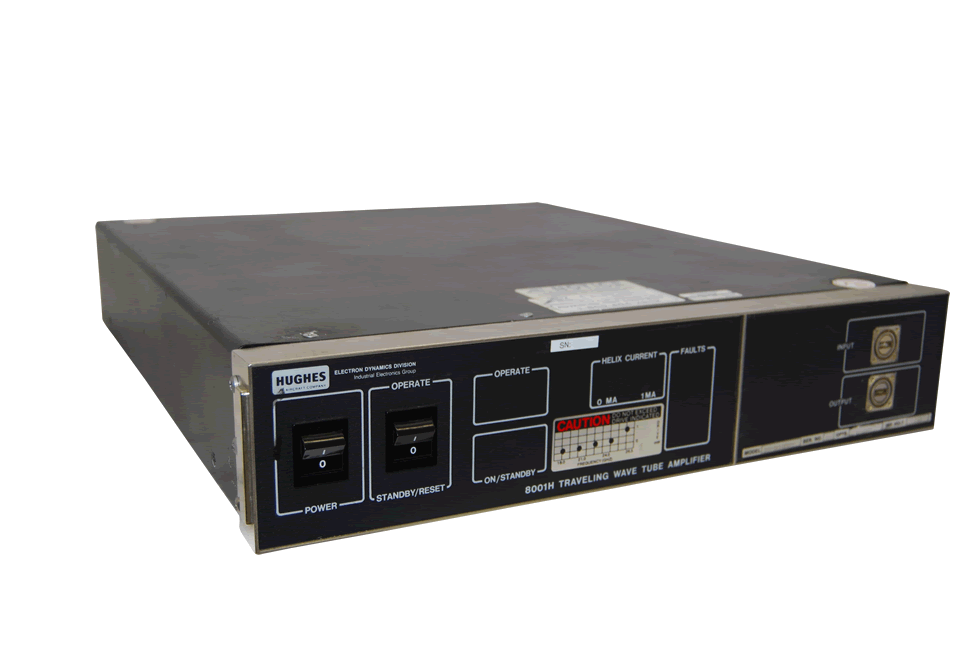

Hughes 8001H11F000 Microwave TWT Amplifier

Hughes 8001H11F000 Microwave TWT Amplifier
Enlarge Image
Hughes 8001H11F000 Microwave TWT Amplifier Hughes 8001H11F000 Microwave TWT Amplifier Hughes 8001H11F000 Microwave TWT Amplifier
Hughes 8001H (1 Watt) Series
Request Quote Print Page
Datasheet
Microwave TWT Amplifiers

Hughes 8001H (1 Watt) Series Features
  • Gain at Rated Power Output: 30 dB min.
  • Duty: CW
Hughes 8001H (1 Watt) Series Specs
TWTA Model Number Frequency RF Connectors (In/Out)
8001H11F-000 18.0 - 26.5 GHz UG-596
8001H12F-000 26.5 - 40.0 GHz UG-600
