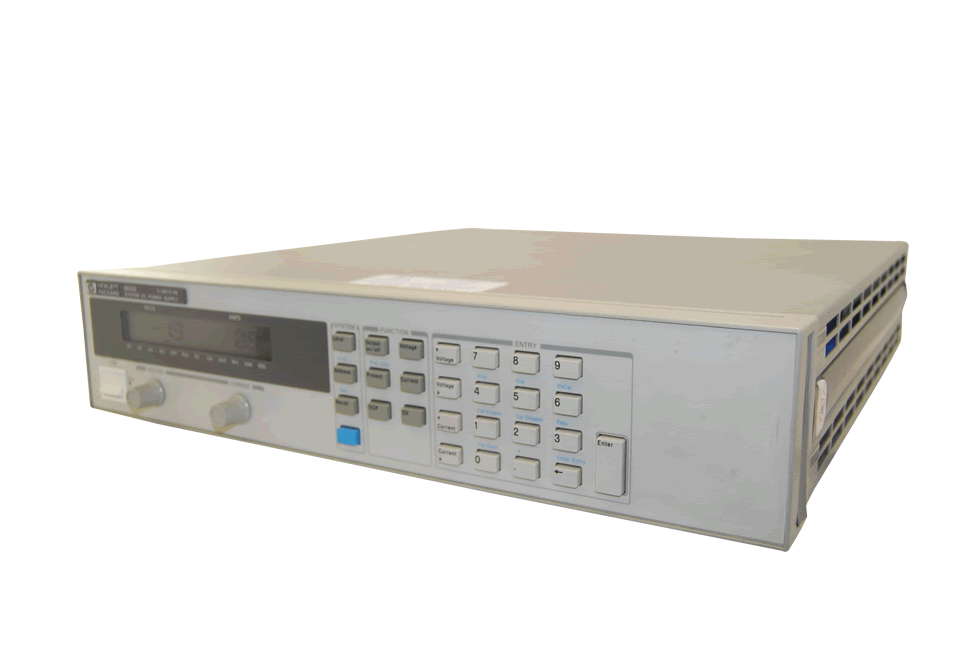

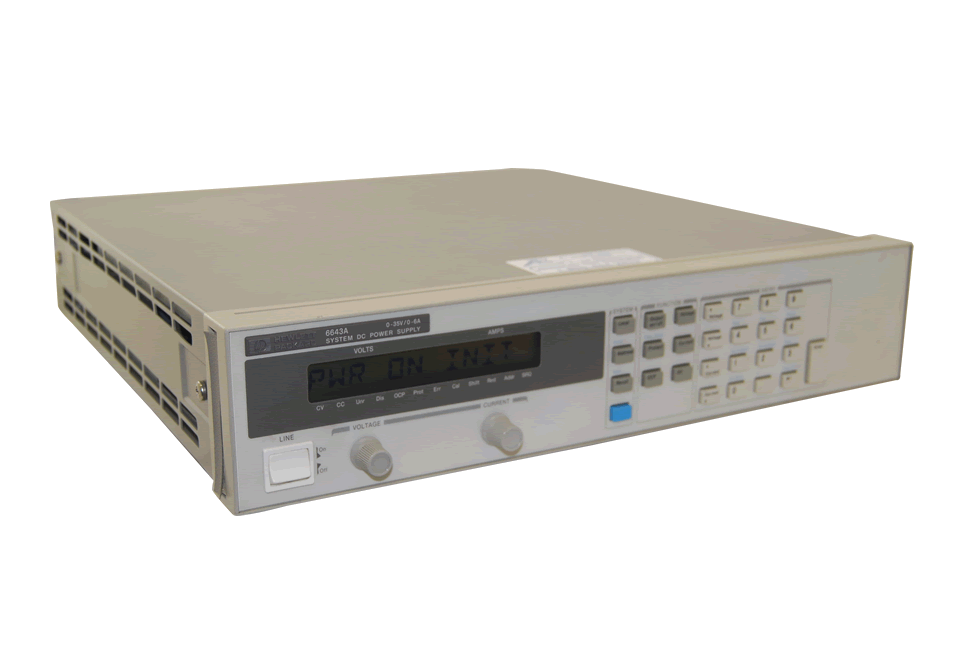

Keysight 6643A Programmable DC Power Supply

HP Agilent 6643A Programmable DC Power Supply
Enlarge Image
HP Agilent 6643A Programmable DC Power Supply HP Agilent 6643A Programmable DC Power Supply HP Agilent 6643A Programmable DC Power Supply
Keysight 6643A
Request Quote Print Page
Datasheet

The Keysight 6643A is a 6 Volt, 35 Amp, 200 Watt System power supply from the 664x series of single output, series pass regulated power supplies, with an internal GPIB interface and SCPI programming. These models provide many talker/listener functions including remote programming of voltage and current with feedback of actual measured output values. 16 supplies can be connected to one GPIB interface via a serial link connection.



Features:

  • Auto-parallel up to three units
  • Outputs can be connected in parallel or in series
  • Programmable over-voltage and over-current protection
  • Over-temperature protection
  • Discrete Fault Indicator/Remote Inhibit (DFI/RI)
  • Self-test occurs at power-on from an GPIB command
  • User definable power-on state
  • VXI plug&play drivers



Specifications:

Programming Accuracy Voltage: 15 mVV
Current: 6.7 mAV
Ripple and Noise (20 Hz to 20 MHz)V Voltage rms: 400 µVV
Voltage peak to peak: 4 mV
Current: 3 mAV
Maximum Output CurrentV 5.4 A/5.1 AV
