E5062A - 150 ENA-L RF Network Analyzer | 300 kHz - 3 GHz
Enlarge Image

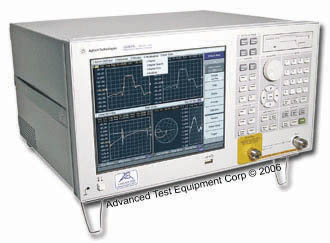

Keysight E5062A
Request Quote Print Page
Manual E5062A Datasheet Brochure Supplemental Document Additional Information

Providing the latest in modern technology and flexibility, the ENA-L network analyzers, including the E5062A, provide basic vector network analysis in a wide range of industries and applications such as wireless communication, cable TV, automotive, education, and more. Designed to reduce tune and test times, these analyzers provide increased throughput to improve your measurement productivity.

The E5062A offers all of the critical performance and features needed in R&D, manufacturing, and service to test RF components such as: filters, amplifiers, antennas, cables, CATV taps, and distribution amplifiers.

Keysight E5062A Features
  • Integrated T/R or S-parameter test set
  • 50 or 75 ohm test port impedance
  • 115 dB dynamic range and 0.005 dB rms trace noise
  • Built-in Visual Basic® for Applications (VBA)
Keysight E5062A Specs
Frequency 300 kHz to 3 GHz
Test set T/R or S-parameter
Port impedance 50 or 75 Ω
Dynamic range 115 dB
Sweep speed 35 ms
Sweep types Linear, log, segment, power
Display 10.4-inch color LCD
Measurement channels 4
ECal support Yes
VBA Programming Yes
Limit lines Yes
Save recall Yes
