Dimensions
(H x W x L) |
15 x 2.75 x 5.5 in (38 x 7 x 14 cm) |
| Weight |
2.7 lb. (1.25 kg) |

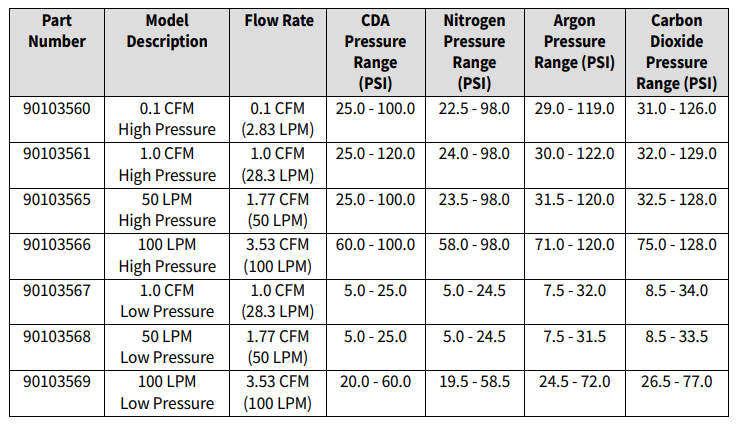

| Pressure |
High pressure:
20 - 100 psi for 0.1 CFM, 1.0 CFM, 50 LPM flow rates
60 - 100 psi for 100 LPM flow rate
Low pressure:
5 - 25 psi for 1.0 CFM and 50 LPM flow rates
20 - 60 psi for 100 LPM flow rate |
| Flow rate |
Options for 0.1 CFM, 1.0 CFM, 50 LPM, or 100 LPM |
| Particle size range |
0.3 - 25 µm |
Temperature range
(typical) |
39 - 86ºF (4 - 30ºC) |
| Humidity |
0 - 85% RH non-condensing |
| Material |
Enclosure: 316L stainless steel body, exhaust filter
Gaskets: 316 stainless steel, Buna-N O-rings |
| Sample gas |
Dry, inert, non-toxic, non-flammable gases
CDA, nitrogen, argon, or carbon dioxide |
| Inlet fitting |
Male 4-VCR fitting, #4 size, class 316L stainless steel with ruby orifice |
| Exhaust fitting |
Barb fitting for 0.75” ID, 0.5” ID, 0.375” ID, or 0.125” ID dependent upon configuration |
| ISO class |
Less than 5% of ISO Class 5 |
| Tubing length maximum |
1 m (39.4 in) |
| Compatible instruments |
Lasair® III particle counters: 310B, 310C, 350C, and 5100
IsoAir® PLUS particle sensors: 310 and 510
IsoAir® 310P particle counter
Airnet® II particle sensors: 301, 310, 501, 510, and 510XR |
