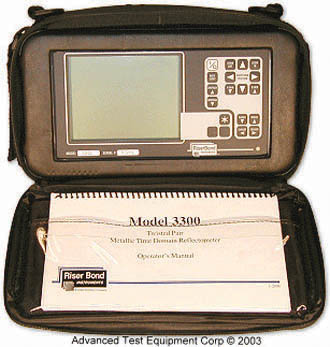

Riser Bond 3300 Twisted Pair Metallic Time Domain Reflectometer

Riser Bond 3300 Twisted Pair Metallic Time Domain Reflectometer
Enlarge Image
Riser Bond 3300
Request Quote Print Page
Manual

Features and specifications

  • Maximum Range:
    • 38,600' (11.7 km) at 60% VOP
    • 63,700' (19.4 km) at 99% VOP
  • Vertical Sensitivity: Greater than 65 dB
  • Horizontal Resolution: 1' (0.1 m) at any VOP
  • Vertical Resolution: 14 bits with 203 dots displayed
  • Output Pulse: Pulse widths of 5, 25, 100 nsec, 1000 nsec
  • Distance Accuracy: ±0.5' (.15 m) plus ±0.01% of reading
  • Velocity of Propagation (Two user-selectable display formats):
    • VOP (%) with 2 digit precision ranging from 30% to 99%
    • V/2 with 3 digit precision ranging from 45 to 148 in meters mode or from 148 to 487 in feet mode
  • Waveform Storage (6144 samples per waveform):
    • Standard: 8x, 50/60 Hz, Auto
    • Optional: 4x, 16x, 32x, 64x, 128x averaging
