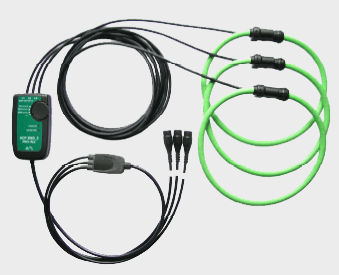

The Sonel PowerCET PRO-flex ACP3003 Three Phase AC Current Probe is a lightweight and multi-use probe used in installation and ideal for reaching difficult locations. The current probe can evaluate low frequencies and can measure a max of 10kHz. The Sonel PowerCET PRO-flex ACP3003 Three Phase AC Current Probe has a load impedance minimum of 100 kΩ and a bandwidth (-1dB) of 10 Hz to 20 kHz.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Dimensions	Probe cable length: 610 mm (24”) / 915 mm (36”) / 1220 mm (48”) Probe cable diameter: 9.9 mm (nominal) Cable length: 2m (Probe to Integrator box)
Current ranges	600A/1200A/3000A AC RMS
Accuracy (at 25°C)	±1% of reading ± 1A
Load impedance	100 kΩ minimum
Noise	400mA
Bandwidth (-1dB)	10 Hz to 20 kHz
Power supply	2 x AA MN 1500 LR6 Alkaline 1000 hours (42 days), low battery indicator External power supply (3V/100mA)
Output sensitivity (AC coupled)	5mV/2.5mV/1 mV/ A [x200/x400/x1000]
Working voltage	1000V AC RMS or DC (probe and integrator) 30V max (output)
Operating temperature range	-20 to +65°C
Storage temperature range	-40 to +75°C
Temperature coefficient	±0.1% of reading / °C
