Sorensen DCR40-25B 40 Volts, 25 Amps DC Power Supply

Sorensen DCR40-25B 40 Volts, 25 Amps DC Power Supply
Enlarge Image

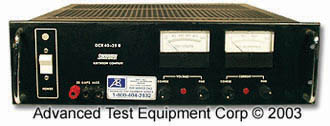

Sorensen DCR40-25B
Request Quote Print Page
Manual Datasheet
40 Volts, 25 Amps DC Power Supply, 1000 Watts

Sorensen DCR40-25B Specs
  • Output Voltage Power: 0-40 Vdc
  • Current: 13-25 Adc
  • Regulation: 12 mV
  • Ripple: 90 mV RMS
  • Ripple: 270 mVp-p
  • Response Time: 50 ms
  • Programming Constants:
    • 300 ohms/V
    • 16 ohms/A
  • Input Voltage Power: 103-127 Vac
  • Input Current: 16A
  • Current Regulation: 63 mA
  • Current Ripple: 56 mA RMS
  • Power Factor: .68
  • Efficiency: 79%
