Sorensen DCR60-18B 60V 18A DC Power Supply

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent Sorensen DCR60-18B 60V 18A DC Power Supply
Enlarge Image

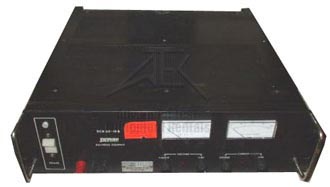

Sorensen DCR60-18B
Request Quote Print Page
Manual DCR60-18B Datasheet
60 Volts, 18 Amps DC Power Supply
Sorensen DCR60-18B Specs
  • Output Power
    Voltage (Vdc): 0 - 60
    Current (Adc): 40°C - 18
  • Low ripple and noise
  • Excellent voltage and current regulation with automatic crossover
  • Remote voltage and resistance programming in voltage and current modes
  • Adjustable current limiting with automatic recovery
  • Over voltage protection with crowbar standard, all models
  • Series Operation: 200 Vdc max. output (150 and 300 V models, two in series)
  • Parallel Operation: Master-slave or straight parallel; four units maximum in master-slave
  • Remote Shutdown: Remote relay, transistor or logic switching can be connected to shutdown terminals on back of supply
  • Cooling: , built-in fan
  • Standard Input Power
    Voltage (Vac): 103-127
    Current (Max. Aac): 19.0
