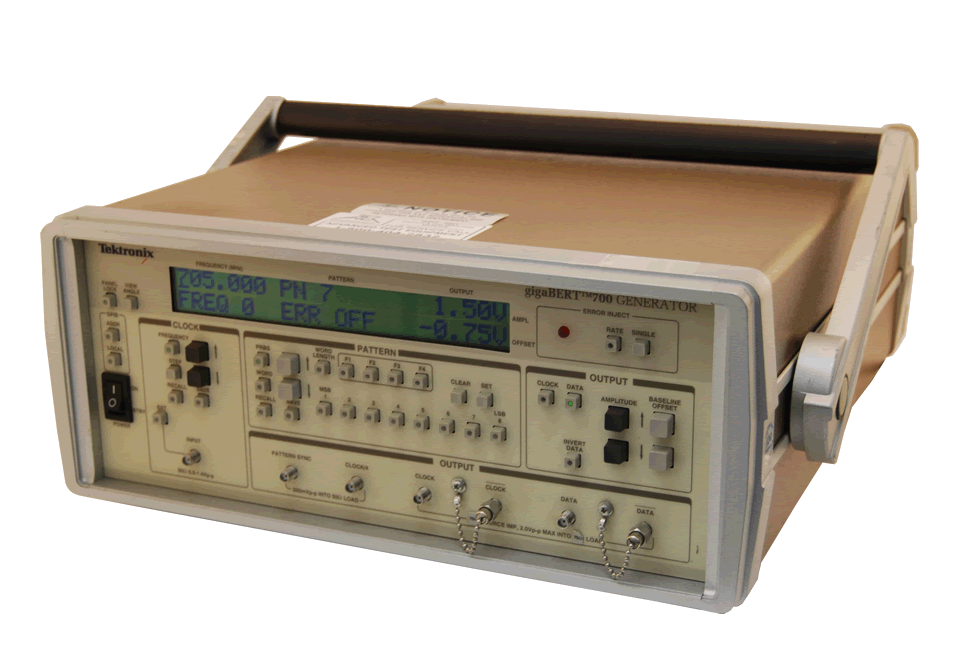

Tektronix GB700R Bit Error Rate Tester

Used Sales Price: $2000
Tektronix GB700R Bit Error Rate Tester
Enlarge Image
Tektronix GB700R Bit Error Rate Tester Tektronix GB700R Bit Error Rate Tester Tektronix GB700R Bit Error Rate Tester
Tektronix Test Equipment GB700
Request Quote Print Page
Manual Datasheet Specifications

Applications

  • LAN/SONET/SDH Component Development
  • Satellite System Training
  • Digital Transmission System Design
  • Fibre Channel Testing
  • Uncompressed Digital Video
  • High-speed ATM Margin Testing
  • Parallel-to-Serial Analysis with MB100



Features

  • Operating Frequency Range 700 Mb/s
  • Internal PLL Synthesized Clock Source
  • PRBS 2n-1; n = 7, 15, 17, 20, 23
  • 128 Kbit Programmable Pattern Memory
  • Auto-synchronization
  • Clock/Data Delay 4 ns, 20 ps Resolution
  • TTL, ECL and PECL I/0 Compatible
  • Reference Data Input for Proprietary Framed Data
  • Pattern Editor (Windows-based) for Custom Word Patterns
  • Reference Data Input for Proprietary Framed Data
  • Phase Synchronous Clock and Data Edge Tracking
  • Supports BURST Mode Operation
