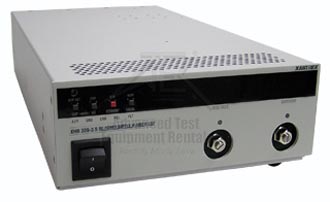

Xantrex XHR 300-3.5, 1050W DC Power Supply

Xantrex XHR 300-3.5, 1050W DC Power Supply
Enlarge Image
Request Quote Print Page

Electrical Specifications:

Output Ratings Voltage: 0-300 V
Current: 0 - 3.5 Amps
Power: 1050 W
Output Ratings at the front panel binding posts Current: 0-3.5 A
Power: 1050 W
Line Regulation Voltage: 10 mV
Current: 0.5 mA
Load Regulation Voltage: 10 mV
Current: 2.5 mA
Meter Accuracy Voltage (0.5% of Vmax +1 count): 4 V
Current (0.5% of Imax + 1 count): 0.05 A
Output Noise (0 MHz - 20 MHz) Voltage (p-p): 100 mV
Output Ripple (rms) Voltage: 20 mV
Drift (8 hours) Voltage (0.05% of Vmax: 150 mV
Current (0.1% of Imax): 3.5 mA
Temperature Coefficient Voltage (0.02% of Vmax/° C): 60 mV
Current (0.03% of Imax/° C): 1.1 mA
Maximum Remote Sense Line Drop Compensation: 5 V/Line
OVP adjustment range: (5% to 110% of Vmax): 15 V - 330 V
Efficiency: 85%
