Advanced Amplifier AA-10K250m-500 Solid State RF Amplifier System

Larger

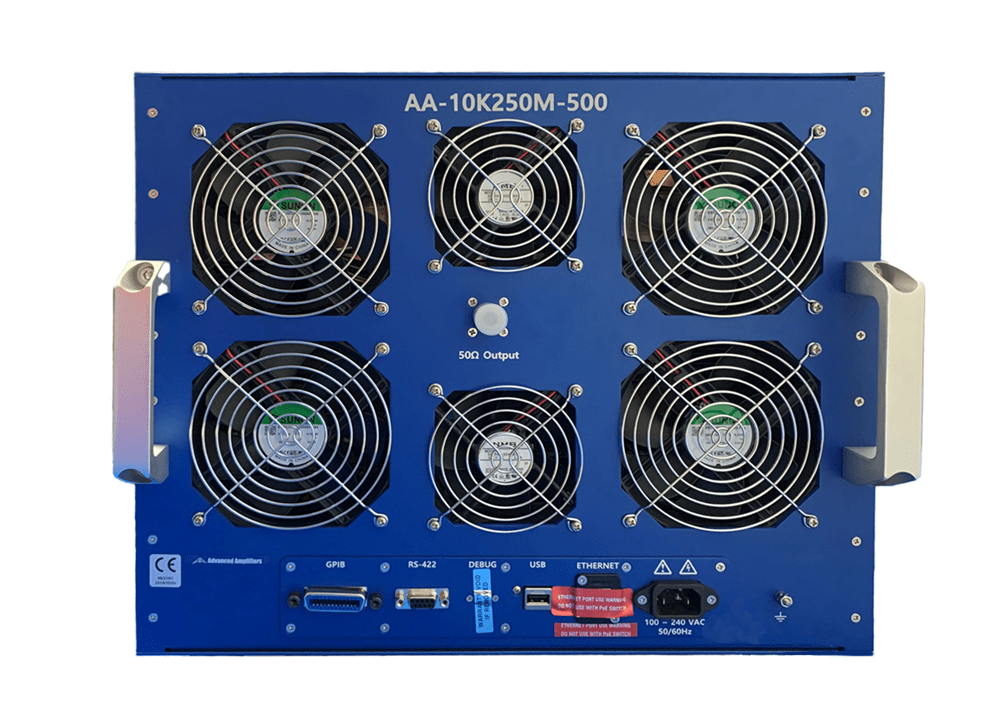

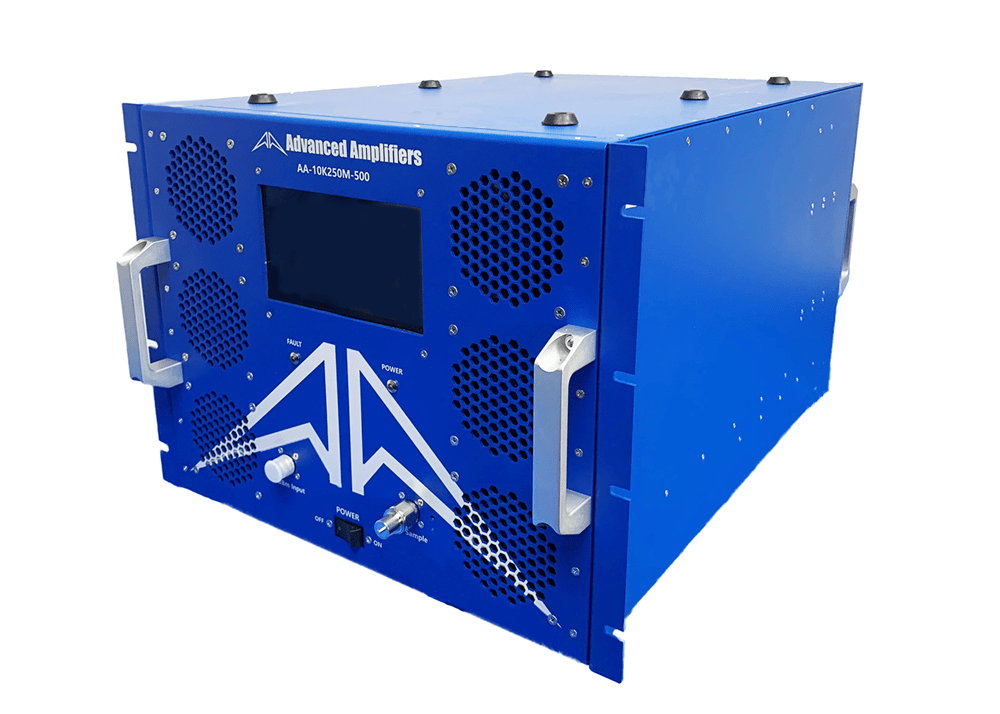

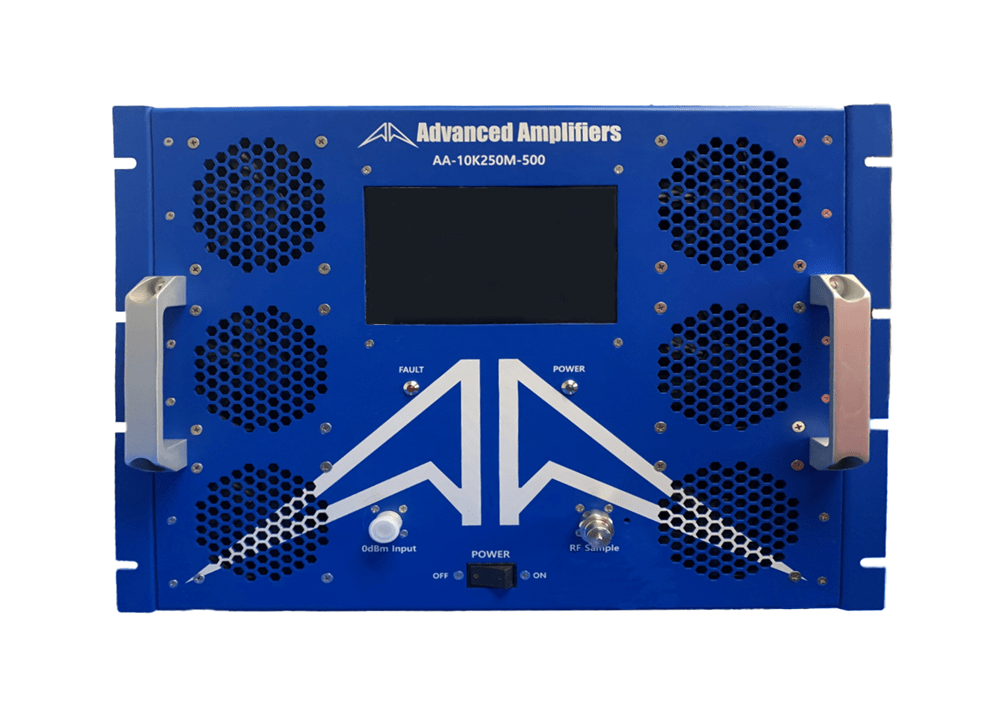

Advanced Amplifier AA-10K250m-500 Solid State RF Amplifier

Categories

Documents

Datasheet
Manual

The Advanced Amplifier AA-10K250m-500 Solid State RF Amplifier is designed for EMI/RFI, lab, CW/Pulse, and other communication applications. The unit has high efficiency and is equipped with protection circuits and remote flexible interfaces. The AA-10K250m-500 model has an operating frequency range of 10 kHz to 250 MHz and power gain of 57 dB minimum. The power output has a 500 W minimum at Psat and 200 W typical at P1dB.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Electrical Specifications
Parameter	Specification	Notes
Operating Frequency Range	10 kHz - 250 MHz
Power Output @ Psat	500 Watt Min	CW or Pulse
Power Output @ P1dB	300 Watt Typ
Power Gain	57 dB Min	0 dBm or less for Rated Power
Gain Adjustment Range	20 dB Min	Local or remote capable
Power Gain Flatness	3 dB p-p Max	Constant input power
Input / Output Return Loss	-10 dB Max
2-Tone Intermodulation (IMD)	-30 dBc Typ	42dBm/Tone, Δ = 1MHz
Harmonics	-20 dBc Typ	At rated output
Spurious	-60 dBc Max	Non-harmonic
Operating Voltage	180 - 240 VAC	47 - 63 Hz
Power Consumption	4500 Watt Max	At rated output
Input Power Protection	+10 dBm Max
Load VSWR Protection	4:1: Max	Foldback @ preset limit
Sample Port	-50 dB	N-Female

Environmental Characteristics
Parameter	Specification	Notes
Operating Ambient Temperature	0 to +50 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	Up to 95%	Non-condensing
Altitude	3000 meters
Shock & Vibration	Normal Transport
