Advanced Amplifiers AA-20520M-400 Solid State High Power Amplifier | 20 - 520 MHz, 400 W

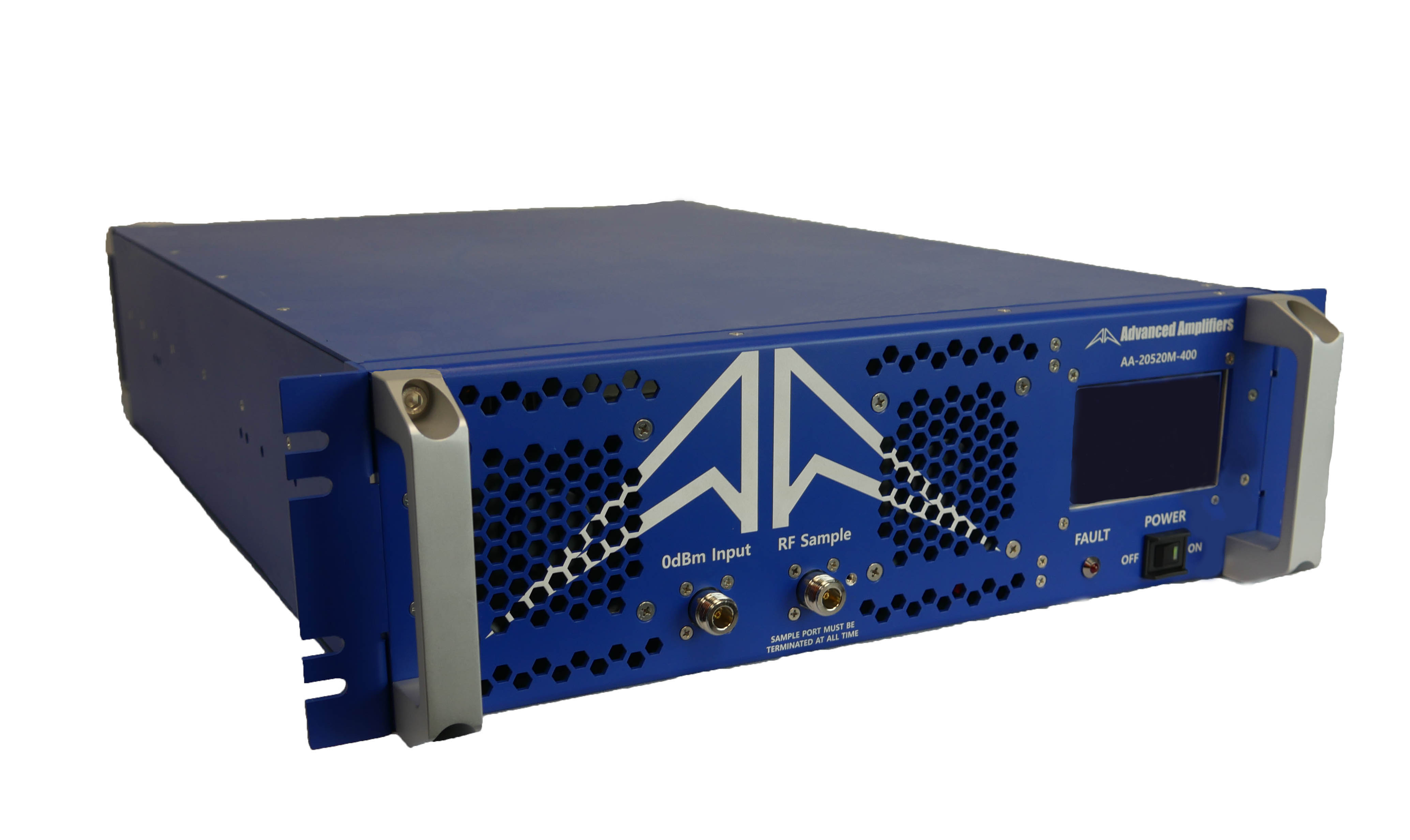

The Advanced Amplifiers AA-20520M-400 Solid State High Power Amplifier is a rack mounted system with a frequency range of 20 to 520 MHz. With a minimum power output of 400 W, a minimum power gain of 56 dB, and an operating voltage of 100 to 240 VAC, the AA-20520M-400 is the ideal model for a variety of testing requirements. The amplifier has an operating ambient temperature of 0 to +50°C and a storage temperature of -40 to +85°C.
Electrical Specifications |
||
|---|---|---|
| Parameter | Specification | Notes |
| Operating Frequency Range | 20 - 520 MHz | |
| Power Output | 400 W (Min) 500 W (Typical) |
CW |
| Power Gain | 56 dB Min | |
| Power Gain Flatness | 3.0 dB p-p Max | Constant input power |
| Input Return Loss | -10 dB Max | Relative to 50 Ohm |
| Operating Voltage | 100 - 240 VAC | |
| Power Consumption | 1200 W | At rated Pout |
Environmental Characteristics |
||
|---|---|---|
| Parameter | Specification | Notes |
| Operating Ambient Temperature | 0 to +50°C | |
| Storage Temperature | -40 to +85°C | |
| Relative Humidity | 5 to 95% | Non-condensing |
Mechanical Specifications |
||
|---|---|---|
| Parameter | Specification | Notes |
| Dimensions (W x H x D) | 430 x 133 x 560 mm (17 x 5 x 22 in) | 3U - Excluding handles |
| Weight | 20 kg. (44 lb.) | |

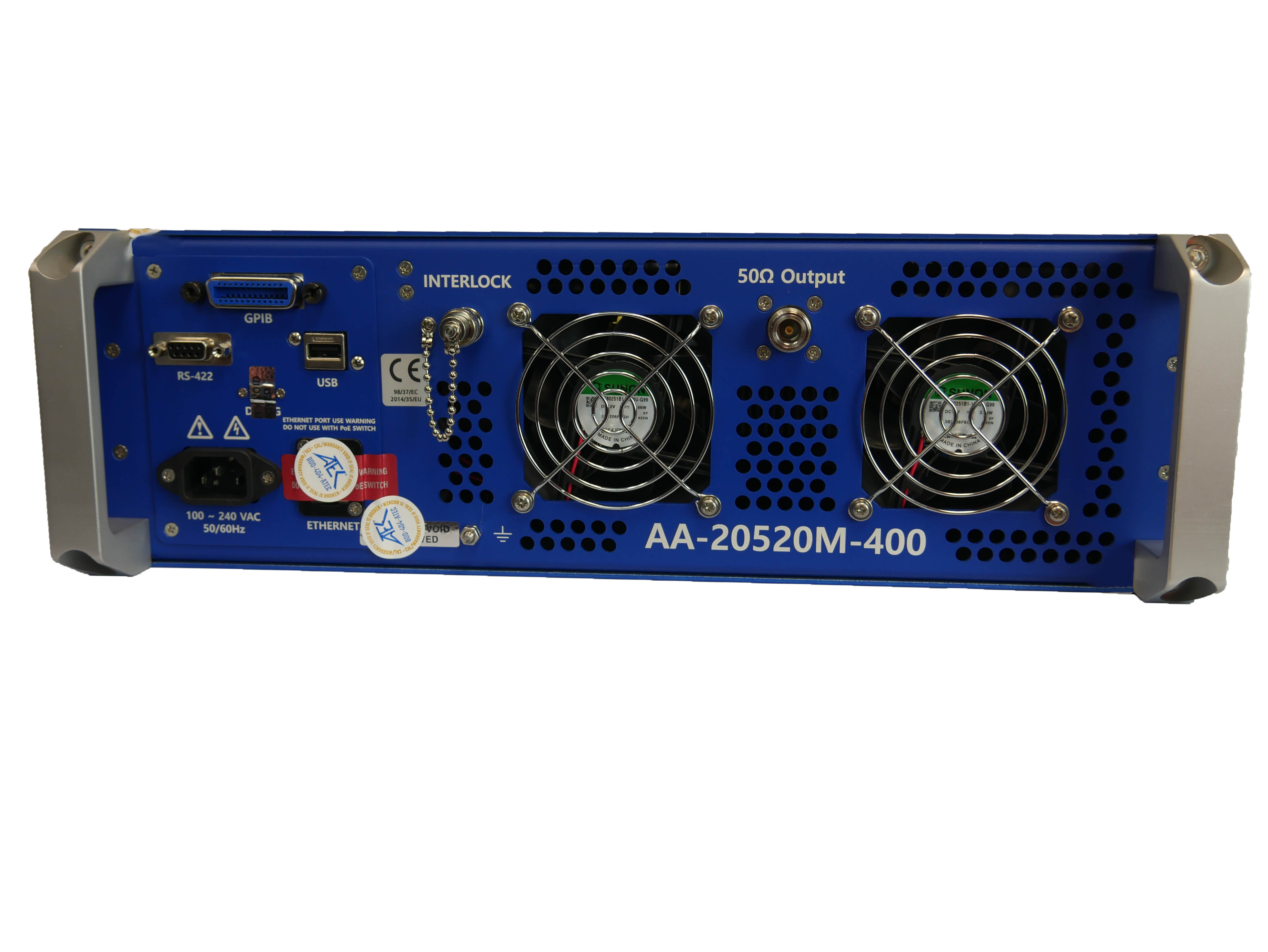

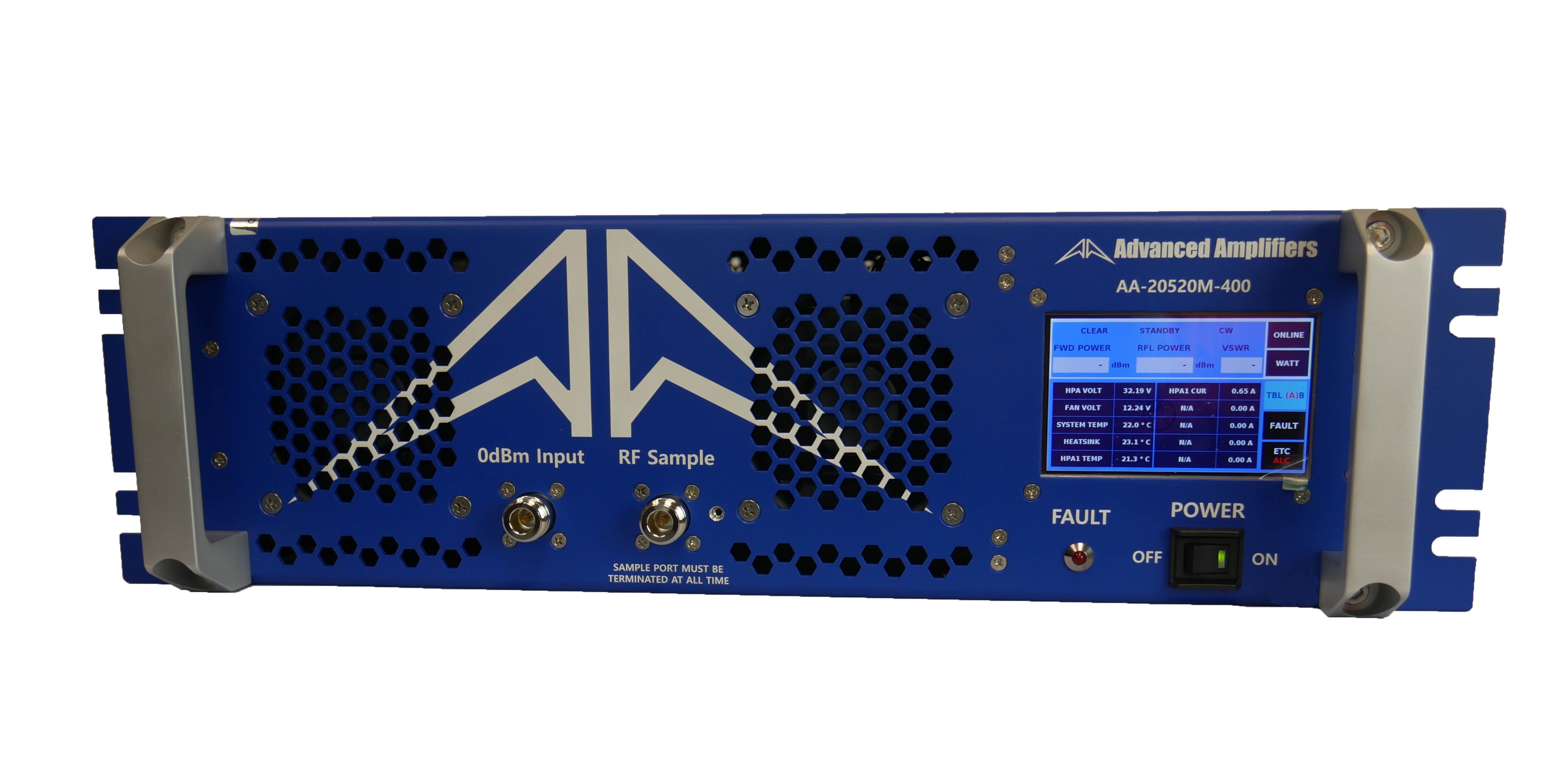

| RF Connectors In / Out | Type-N Female | Front or rear panel |
| AC Power / Interface Connector | IEC 60320-C14 / 9-Pin D-Sub | Or equivalent |
| Cooling | Built-in fan cooling | Variable speed |
- Instantaneous ultra-wide bandwidth
- Class AB linear LDMOS design
- Rack mounted system
- Designed for broadband EMI/RFI, Lab, EW, and Comm applications
- Suitable for all single channel modulation standards
- Built-in protection circuits
- High reliability and ruggedness
