The Advanced Amplifiers AA-2100M-2000 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 2 - 100MHz and generates 2000W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-2100M-2000 has a power gain of 63 dB minimum and operates with an input of 100 – 240 VAC (7000W).

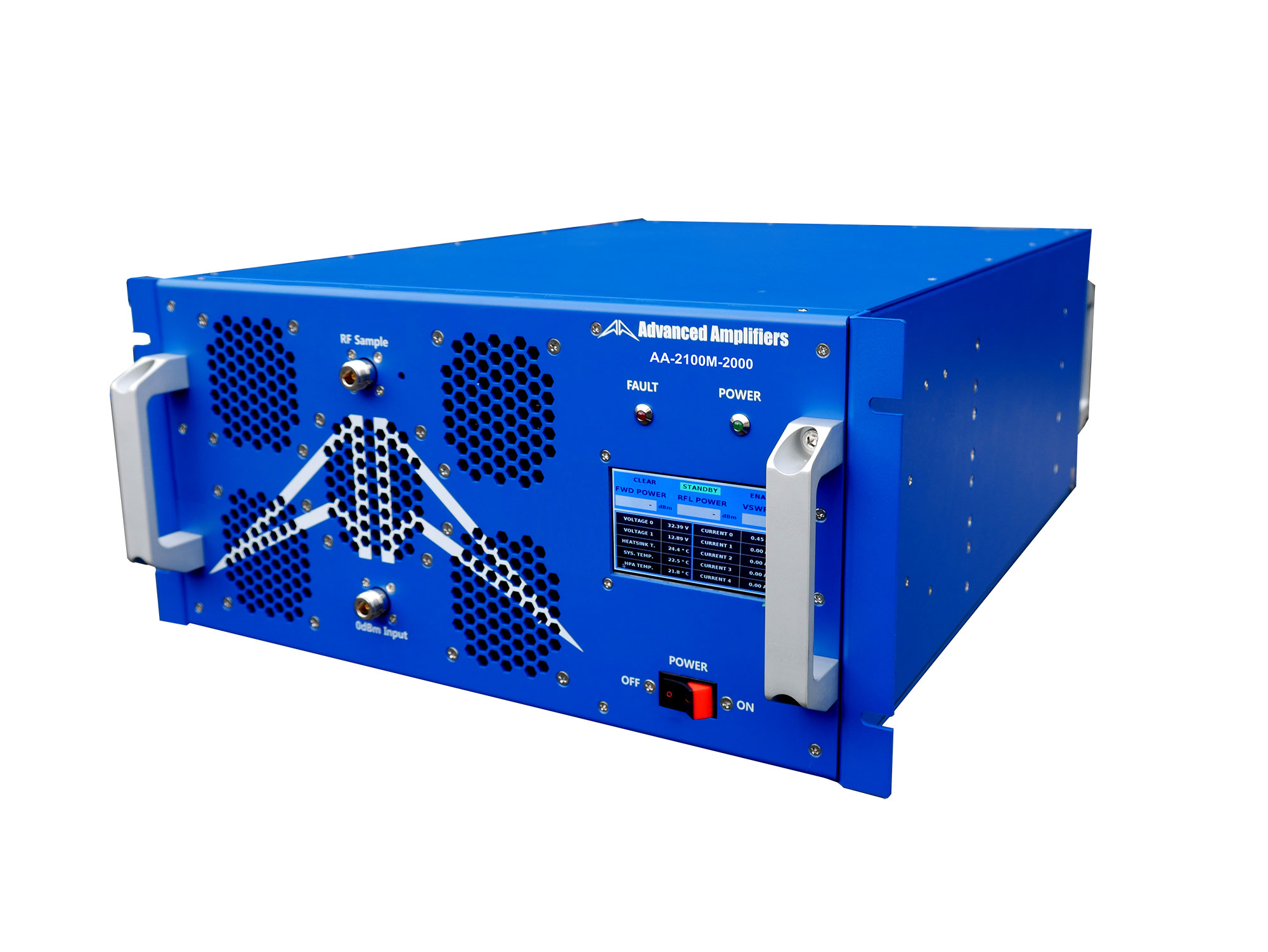

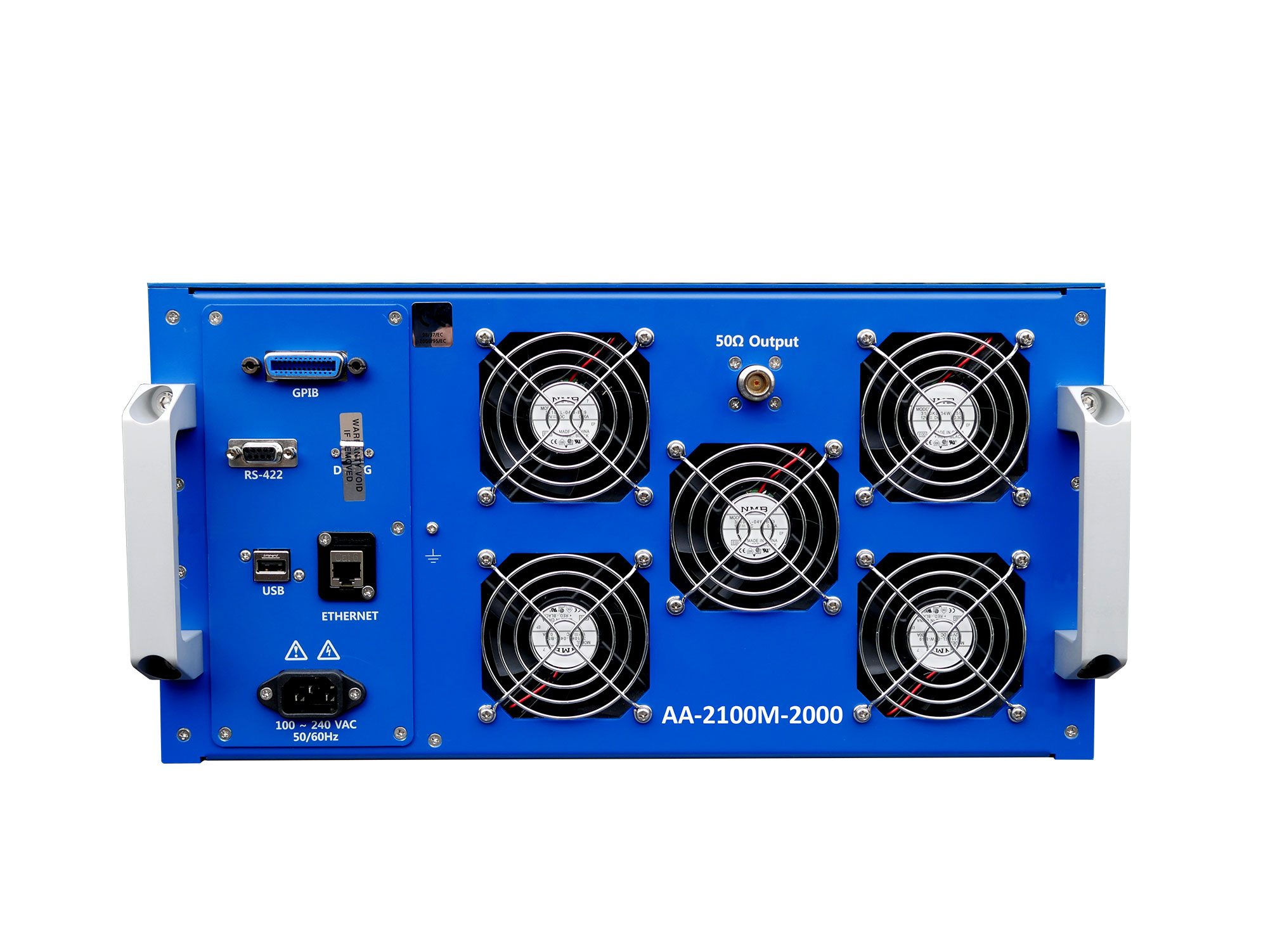

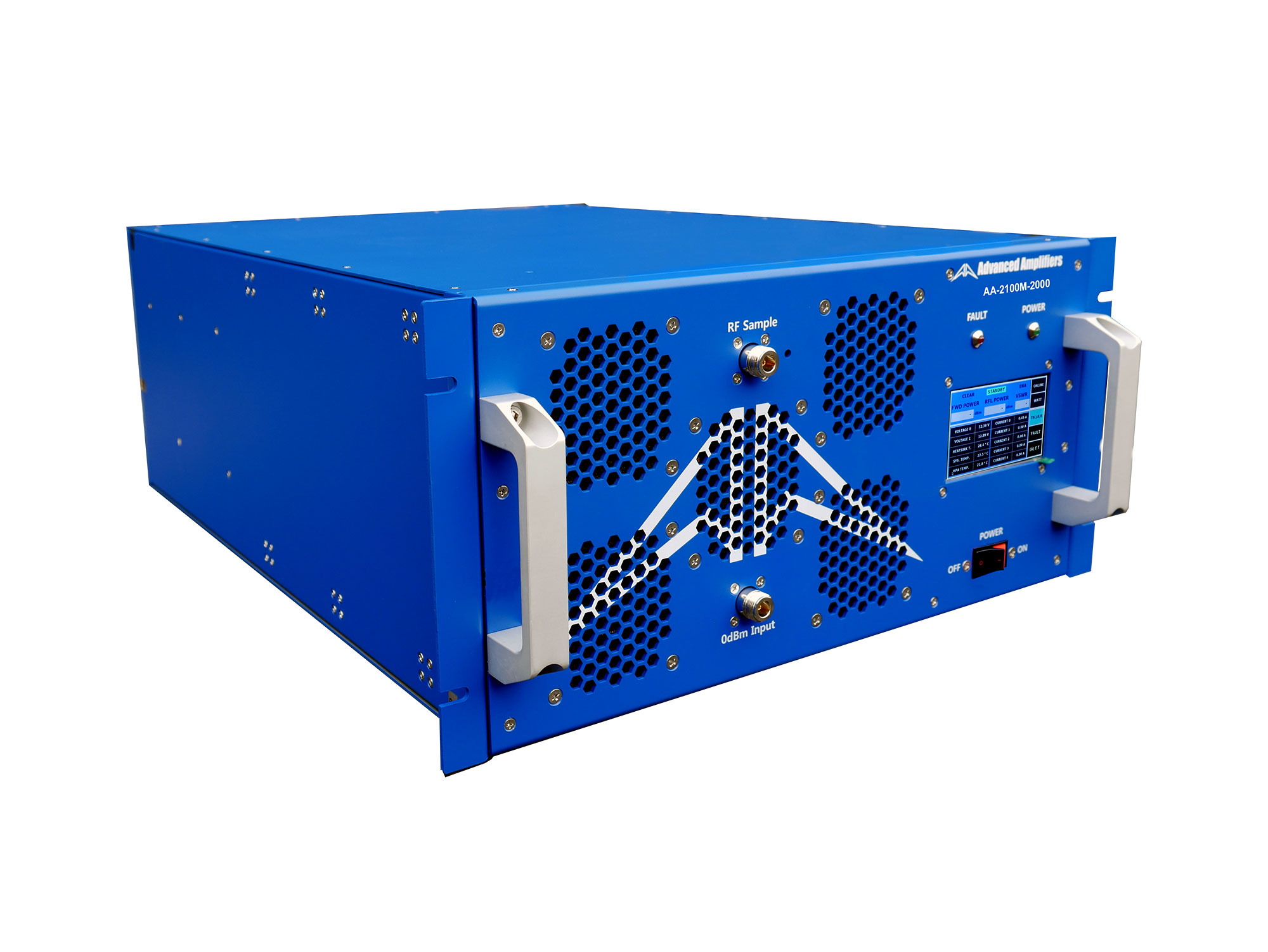

The AA-2100M-2000 has a low-profile (7U) build, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifier AA-2100M-2000 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.
