Amplifier Research 10W1000 Amplifier 1 MHz - 1000 MHz 10W

Amplifier Research 10W1000 Amplifier, 1 MHz - 1000 MHz
Enlarge Image

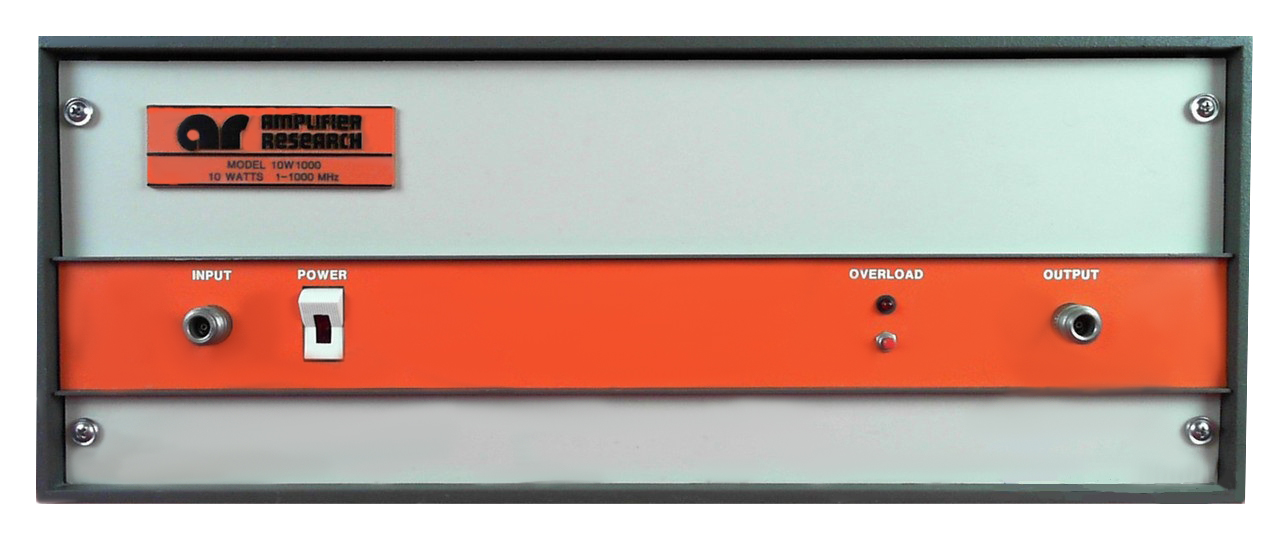

Amplifier Research 10W1000
Request Quote Print Page
Manual Datasheet
1 MHz - 1000 MHz, Ultra-Broadband RF Power Amp

Amplifier Research 10W1000 Specs
Power Output Maximum: 22W
Linear: 1 MHz - 900 MHz: 10W
900 MHz - 1000 MHz: 8W
Flatness Maximum: ± 1.5 dB
Typical: ± 1.0 dB
Frequency Response (instantaneous) 1 MHz - 1000 MHz
Power Gain 40 dB minimum
Input Impedance 50 ohms; VSWR 2.0:1 max.
Output Impedance 50 ohms nominal
Reverse Isolation Greater than 45 dB
Class of Operation A
RF Connectors Type N female
Weight 63 lbs (28.6 kg)
