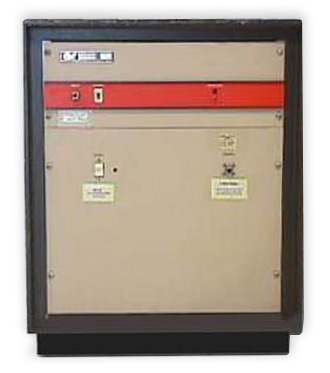

Amplifier Research 50W1000 Broadband Amplifier

Amplifier Research 50W1000 Broadband Power Amplifier
Enlarge Image
Amplifier Research 50W1000
Request Quote Print Page
Specifications

Specifications:


Power Output, cw minimum 50W
Power Output, cw linear (less than 1 dB compression into 50 ohms) 40W min.
Flatness ± 2.0 dB max
± 1.5 dB typical
Frequency Response (instantaneous) 1 MHz - 1000 MHz
Input for Rated Output 1.0 milliwatt max.
Power Gain 47 dB minimum
Input Impedance 50 ohms; VSWR 2:1 max.
Output Impedance 50 ohms nominal
RF Connectors Type N female
