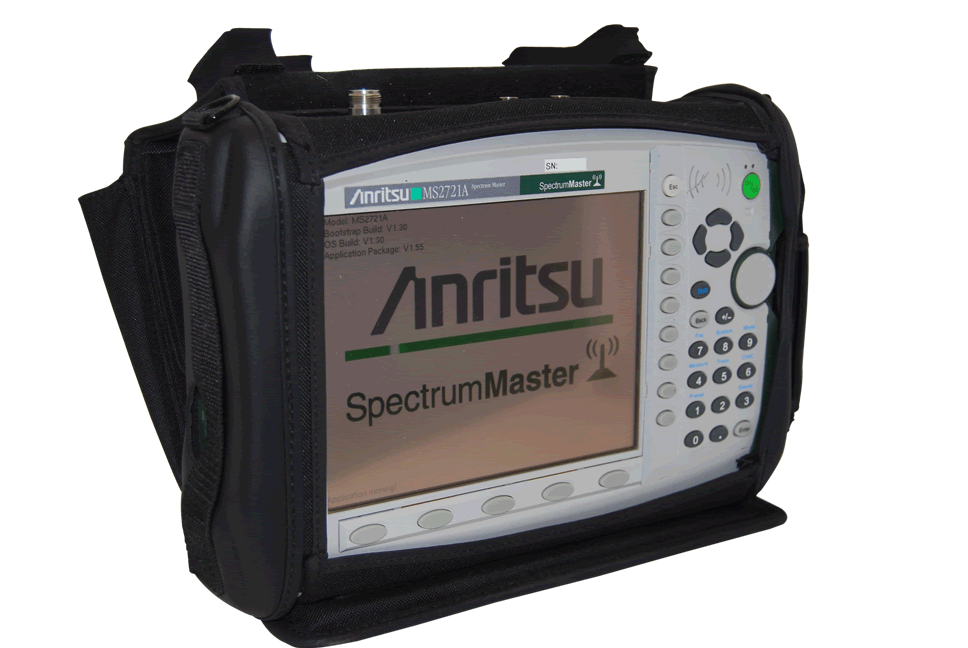

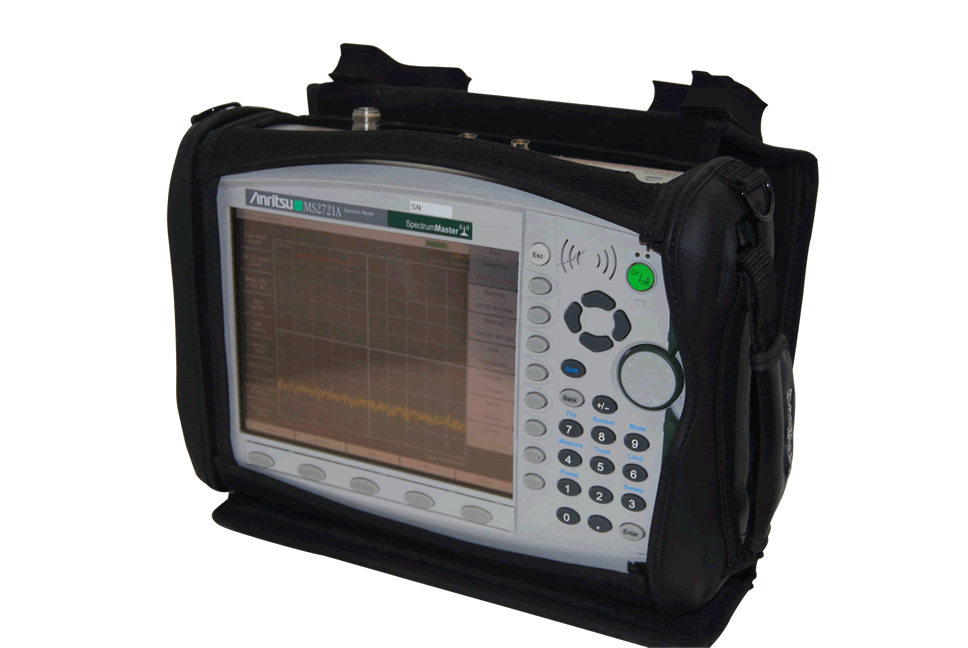

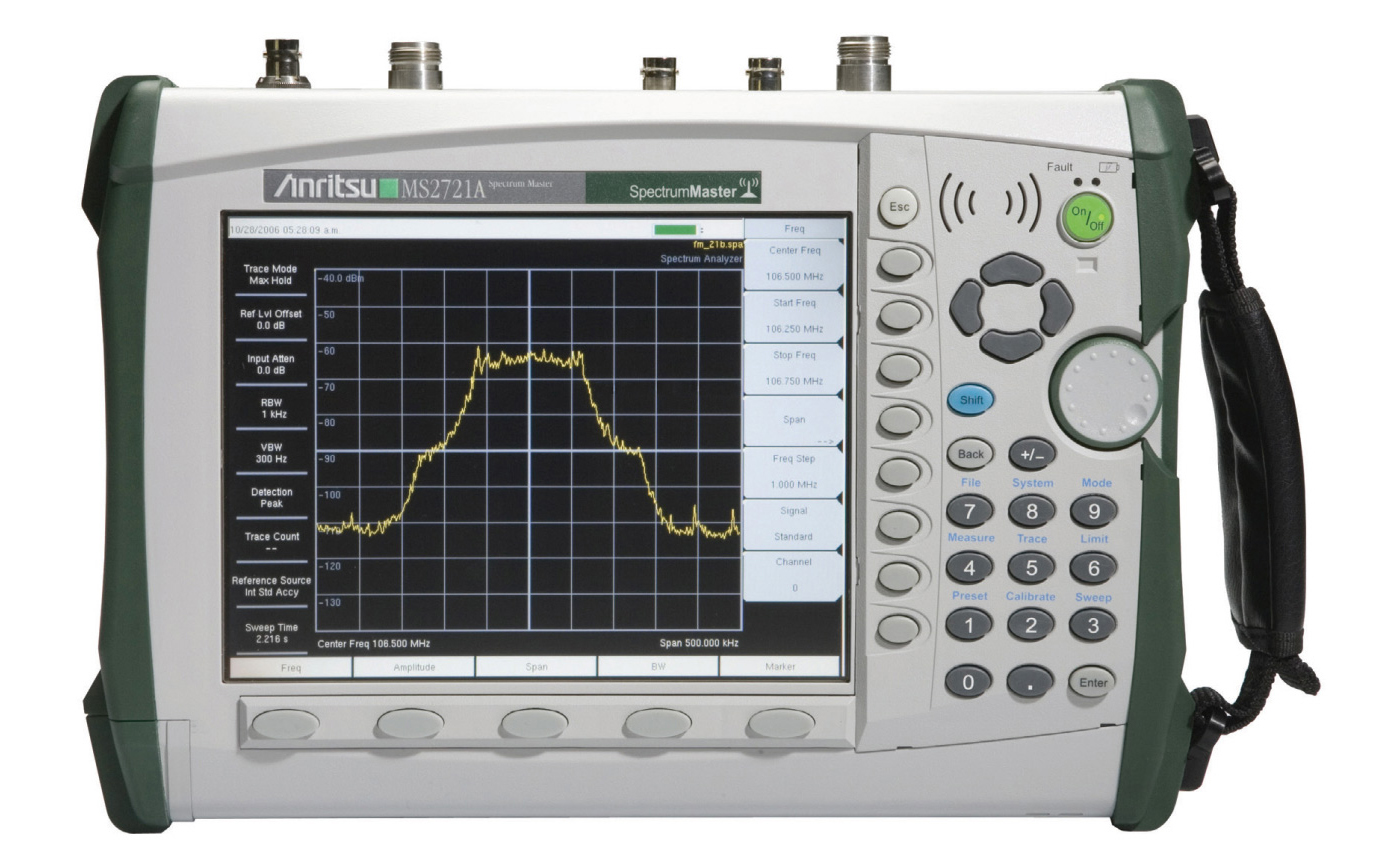

Anritsu MS2721A Handheld Spectrum Master

Anritsu MS2721A Handheld Spectrum Master
Enlarge Image
Anritsu MS2721A Handheld Spectrum Master Anritsu MS2721A Handheld Spectrum Master Anritsu MS2721A Handheld Spectrum Master
Anritsu MS2721A
Request Quote Print Page
Manual Datasheet Other1

The Anritsu MS2721A Handheld Spectrum Analyzer continuous frequency coverage from 100 kHz to 7.1 GHz gives the wireless professional the performance needed for the most demanding measurements in harsh RF and physical environments. Whether your need is for spectrum monitoring, WiFi and WiFi5 installation and testing, RF and microwave signal measurements or cellular signal measurements, the Anritsu MS2721A Spectrum Master gives you the tool you need to make the job easier and more productive.



Features:

  • 10 Hz to 3 MHz RBW range
  • Very low phase noise (–100 dBc/Hz maximum at 10 kHz offset at 7.1 GHz)
  • Built-in preamplifier
  • 65 dB step attenuator
  • Input protected to 20 watts
  • True RMS detection
  • Built-in AM/FM/SSB demodulator
  • 3+ hours of battery life
  • 2.9 kg (<6.4 lbs)



Specifications:

Frequency Range 100 kHz to 7.1 GHz (usable down to 9 KHz)
Tuning Resolution 1 Hz
Frequency Reference Aging: ±1 ppm/yr.
Accuracy: ±1 ppm (25C ± 25C) + long term drift
Frequency Span: 10 Hz to 7.1 GHz plus 0 Hz (zero span)
Span Accuracy: Same as frequency reference accuracy
Sweep Time: Minimum 100 ms, 50 µs in zero span
Sweep Time Accuracy: ±2% in zero span
Sweep Trigger: Free run, Single, Video, External
Resolution Bandwidth: (–3 dB width) 10 Hz to 3 MHz in 1-3 sequence ± 10%, 8 MHz demodulation bandwidth
Video Bandwidth: (–3 dB) 1 Hz to 3 MHz in 1-3 sequence
SSB Phase Noise: –100 dBc/Hz max at 10, 20 and 30 kHz offset from carrier.
–102 dBc/Hz max at 100 kHz offset from carrier.
