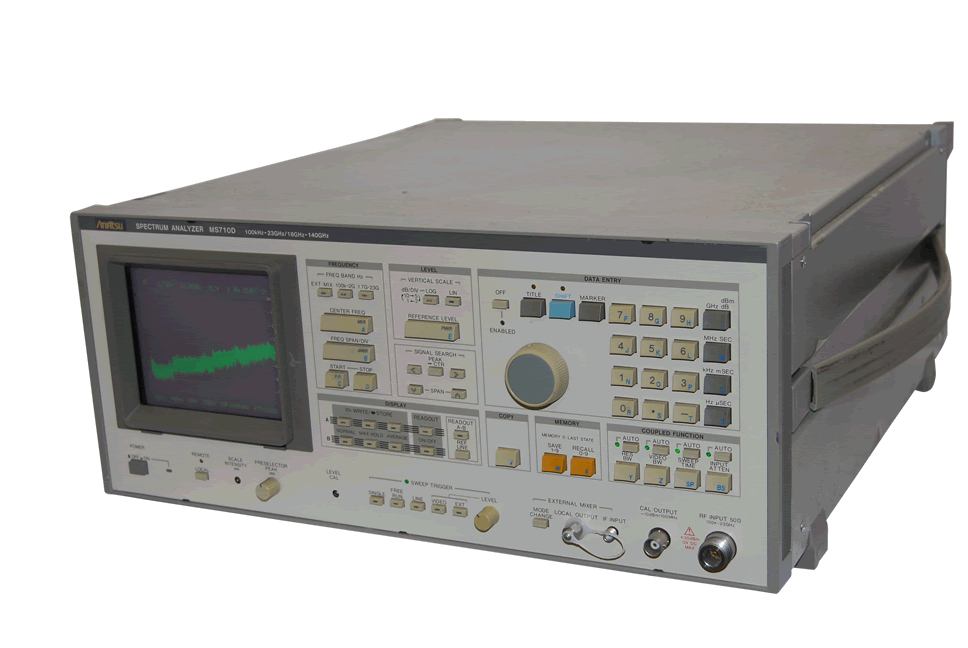

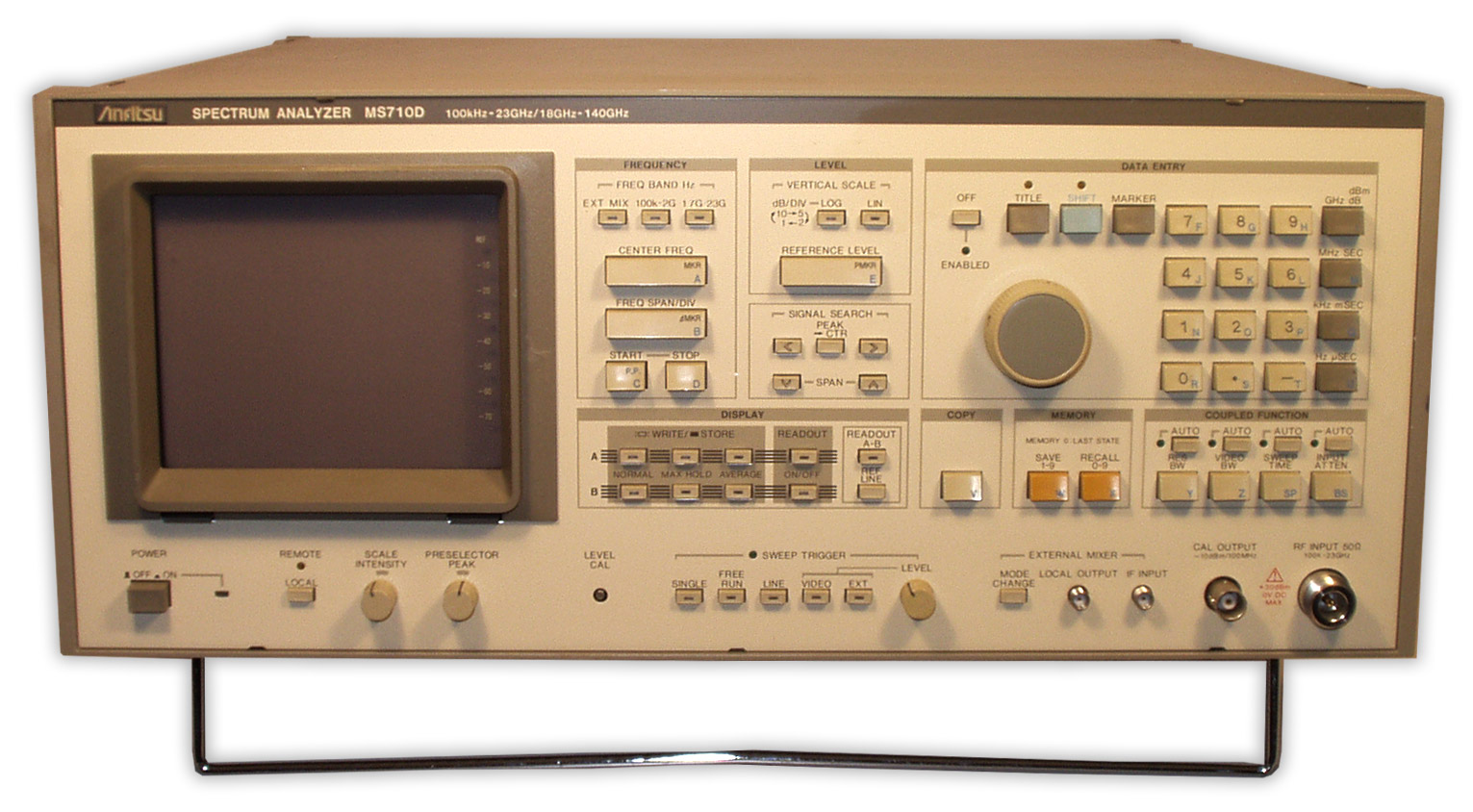

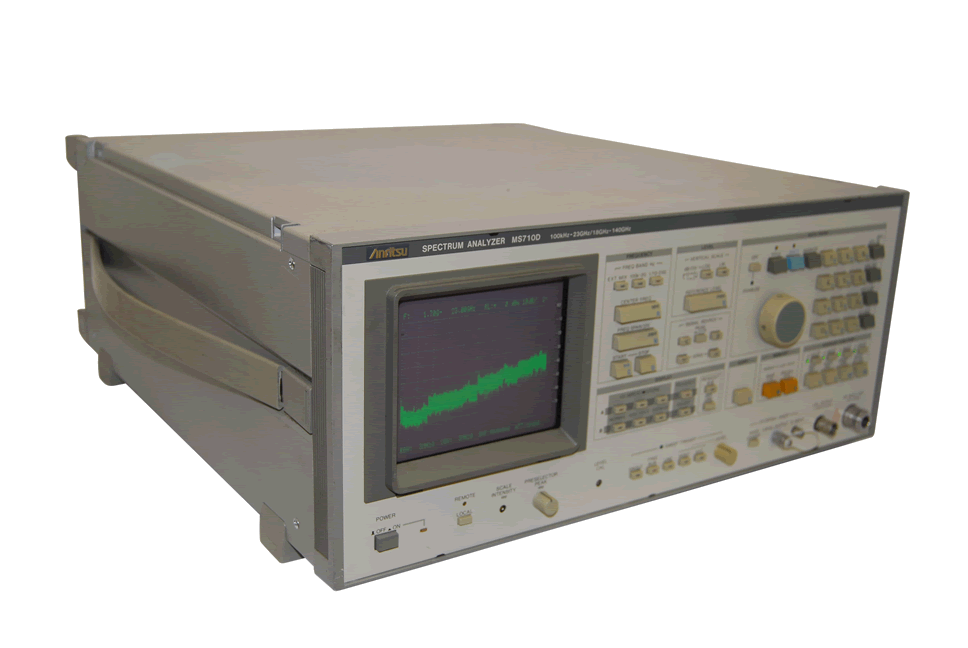

Anritsu MS710D Spectrum Analyzer

Anritsu MS710D Spectrum Analyzer
Enlarge Image
Anritsu MS710D Spectrum Analyzer Anritsu MS710D Spectrum Analyzer
Anritsu MS710D
Request Quote Print Page
Other1
100 kHz - 140 GHz Spectrum Analyzer

Anritsu MS710D Features
  • Internal preselector
  • Full range of trace data processing functions
  • CRT display of all function parameters
  • Large variety of marker function
  • Direct plotting capability
  • GP-IB provided as standard
Anritsu MS710D Specs
Frequency Range 100kHz - 23GHz
18GHz - 140 GHz with external mixer
Amplitude Range -125dBm - +30dBm
Resolution Bandwidth 100Hz - 3MHz
Dynamic Range 100dB (1.7GHz - 23GHz)
Function Setting Memory 10 sets can be saved or recalled
Sweep Time 2ms/div to 10sec/div
Trigger Single, Free Run, Line, Video and External Trigger
