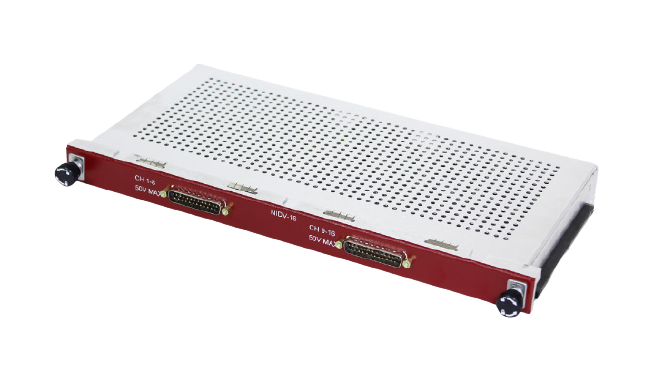

The AstroNova NIDV-16 input module provides 16 nonisolated differential voltage inputs and a 12V DC for powering external transducers. Connections on the AstroNova NIDV-16 are made by two 25-pin D-sub connectors. Applications for the AstroNova NIDV-16 input module include process monitoring and control, troubleshooting and repair, and product verification and validation.

Channels Per Module	16
Connector	Two 25-pin D-sub male connectors
Input	Differential, DC coupled
Bandwidth	40 kHz (-3dB)
Isolation	No
Sample Rate	200 kS/s/ch (100 kS/s/ch when using TMX-E or TMX-R)
A/D	16 bit SAR (one per channel)
Attenuator Ranges	200, 400 and 800 mV; 2, 4, 5, 10, 25 and 50 V
Pulse width range	40 μs - 40000 μs
