Model |

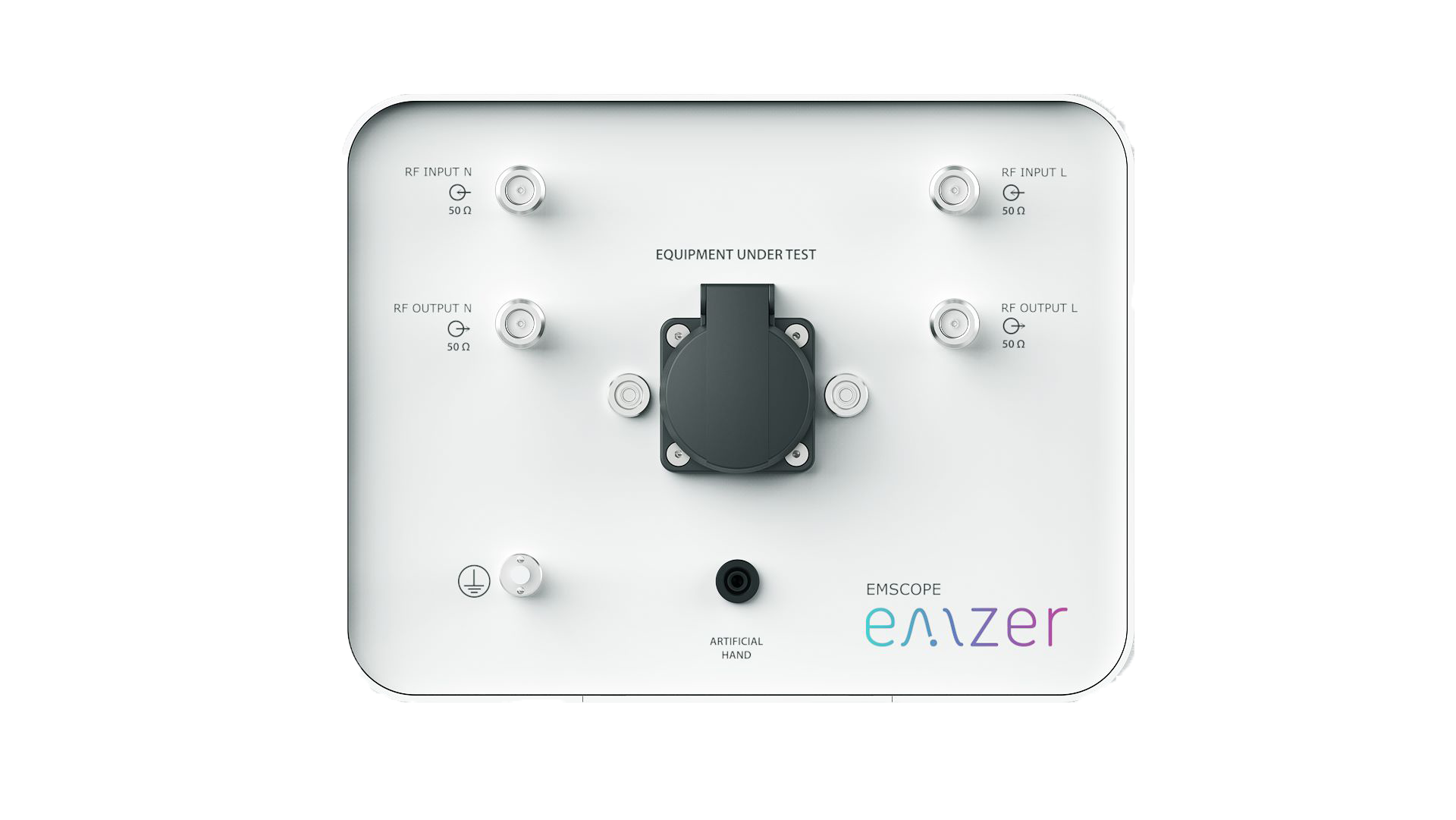

EMSCOPE |
Frequency Range |
9 kHz - 30 MHz
9 kHz - 110 MHz (with upgrade) |
Type of Measurements |
EMI (line and neutral)
Modal (common and differential mode) conducted emissions |
Resolution Bandwidth Filters |
200 Hz, 9 kHz, 120 kHz (CISPR)
1 kHz, 10 kHz (MIL) |
Integrated Circuits |
Pre-amplifiers and pulse limiters |
Detectors |
Peak, quasi-peak, and average |
Dimensions (H x W x D) |
195 x 252 x 438 mm (7.7 x 10 x 17.2 in) |
Weight |
8.5 kg (18.7 lb.) |
