EXFO FOT-10A (FOT-12AX) Fiber Optic Tester

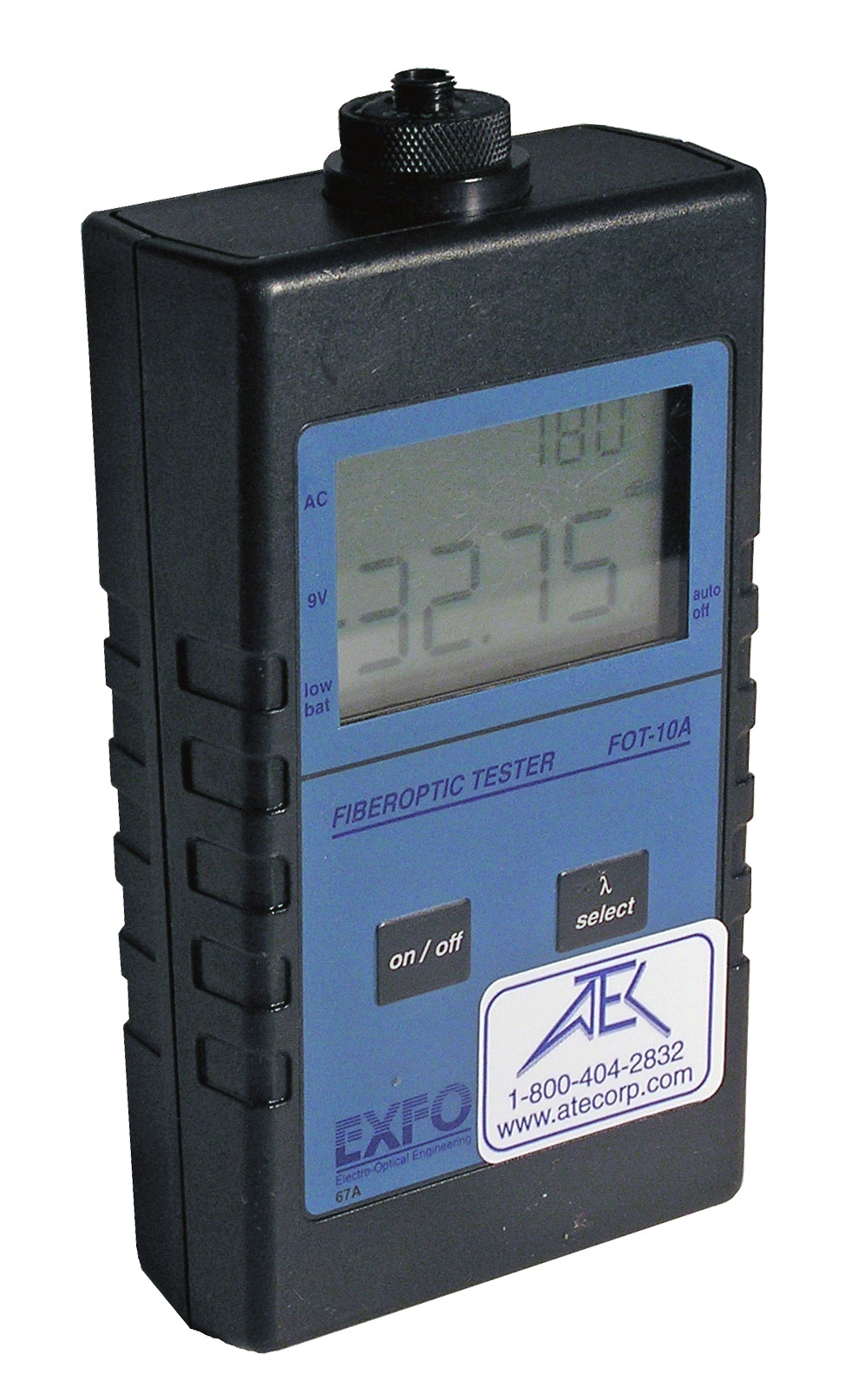

EXFO FOT-10A Fiber Optic Tester
Enlarge Image
Request Quote Print Page
Manual Datasheet

Features:

  • Direct loss measurement in dB
  • Five electronically calibrated wavelengths
  • Shockproof holster also acts as storage compartment for fiber optic adapters and replacement battery
  • Auto-off function
  • Power measurements in dBm



Applications:

  • Transmitter power measurements (dBm and W)
  • Fiber-link loss testing (dB)
  • Component insertion-loss testing (dB)
  • Fiber identification with 2 kHz signals
  • LAN installation and maintenance applications



Optical Specifications:

  • Detector Type: GeX (2 mm)
  • Standard Wavelengths: 780, 850, 1300, 1310, 1550 nm
  • Measurement Range: 21 to -50 dBm
  • Resolution: ±0.05 dB
  • Uncertainty: ± 5%
