Hughes 1177H Series Power Amplifier

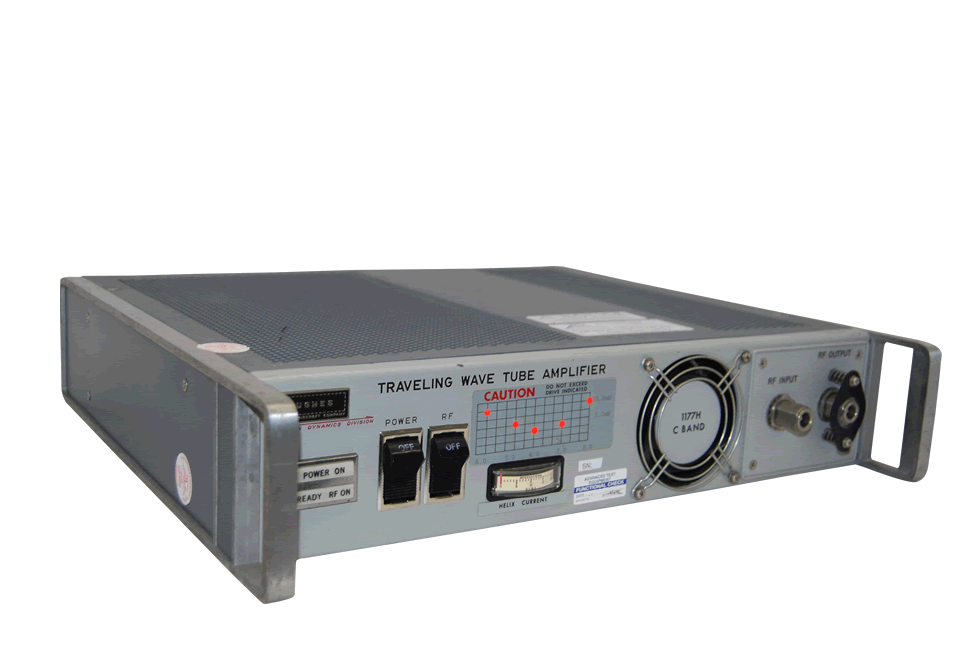

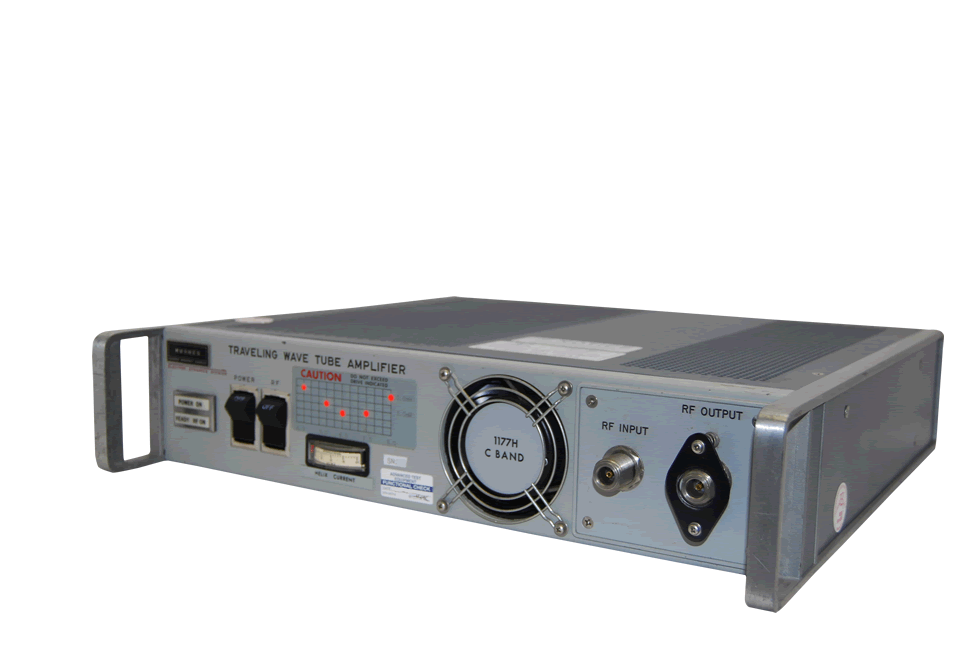

Hughes 1177H Series Instrumentation Power Amplifier
Enlarge Image
Hughes 1177H Series Instrumentation Power Amplifier Hughes 1177H Series Instrumentation Power Amplifier Hughes 1177H Series Instrumentation Power Amplifier
Hughes 1177H Series
Request Quote Print Page
Specifications


Specifications:

Model Number Band Frequency (GHz) Output Power (W) RF Connectors (In/Out)
1177H09F000 L 1.0 - 2.0 10.0 Type N
1177H10F000 L 1.4 - 2.4 20.0 Type N
1177H01F000 S 2.0 - 4.0 10.0 Type N
1177H02F000 C 4.0 - 8.0 10.0 Type N
1177H03F000 X 8.0 - 12.4 10.0 Type N
1177H04F000 Ku 12.4 - 18.0 10.0 SMA or WR-62


Options: Isolator/circulators, high gain, and automatic reset 220/440 AC or 28/48 DC input voltage, unattended protection, rack mounting, local/remote, 48 Hz to 420 Hz, logic circuit (TTL).


Note: Each amplifier contains a PPM-focused, metal-ceramic TWT, all solid-state, air-cooled power supply in a 19-inch instrument case.
