Keysight 11967D Single Phase LISN

HP/ Agilent 11967D Single Phase Stabilization Network 9 kHz to 30 MHz
Enlarge Image
Keysight 11967D
Request Quote Print Page
Specifications



Features:

  • Frequency Range: 9 kHz to 30 MHz
  • Continuous Current Rating: 10A
  • Earth Line Choke
  • Artificial Hand Network

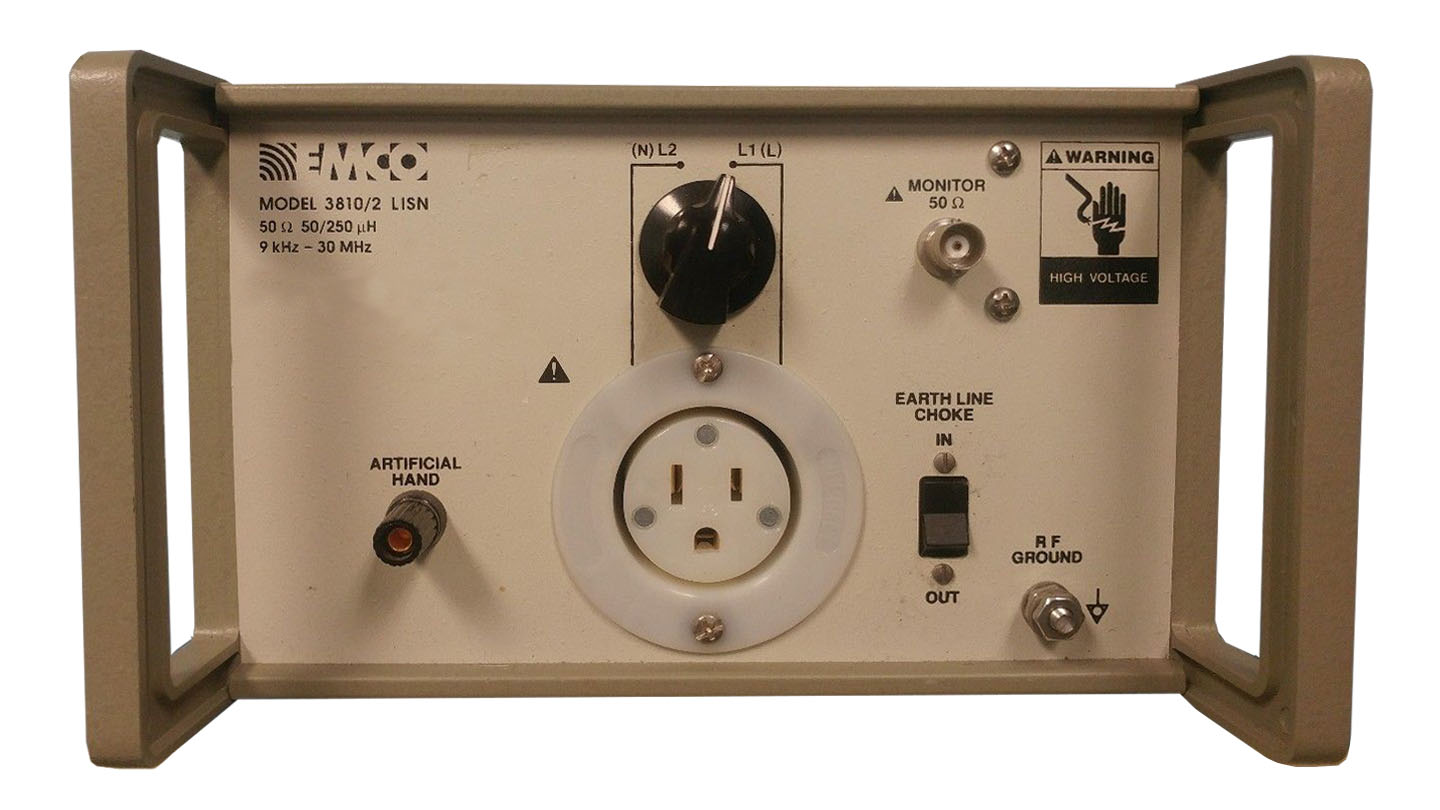

  • Information on the Keysight 11967D (EMCO 3810/2) LISN / PLISN
  • Meets the requirements of FCC, VCCI, and the European Norms
  • Standard unit comes with a NEMA power out connector
  • Option 001 replaces NEMA with a SCHUKO power out connector
  • Option 002 replaces NEMA with a British connector
  • Power Source Frequency: 60 Hz (Option 001 & 002 50 Hz)
  • Maximum Current: 10 Amperes
  • Maximum Voltage: 125VAC Line-to-Ground (Option 001 & 002 250VAC)
  • Network Impedance: 50µH/250 µH/50 ohms
