Keysight 8564EC 9 kHz - 40 GHz Spectrum Analyzer

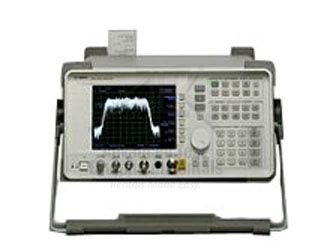

HP/Agilent 8564EC Portable Spectrum Analyzer
Enlarge Image
Keysight 8564EC
Request Quote Print Page

The Keysight 8564EC portable, color display millimeter wave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. You can measure signals from 9 kHz to 40 GHz (preselected above 2.75 GHz) with a single coaxial connection.


It combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.


Keysight 8564EC Features
  • Fast digital resolution bandwidths of 1 Hz to 3 MHz
  • Portable, MIL-PRF-28800, Class 3 rugged
  • Easily transfer screen image or trace data to PC with BenchLink software E4444A BenchLink software
Keysight 8564EC Specs
Frequency range
Internal mixing 9 kHz to 40 GHz
External mixing 18 GHz to 325 GHz
