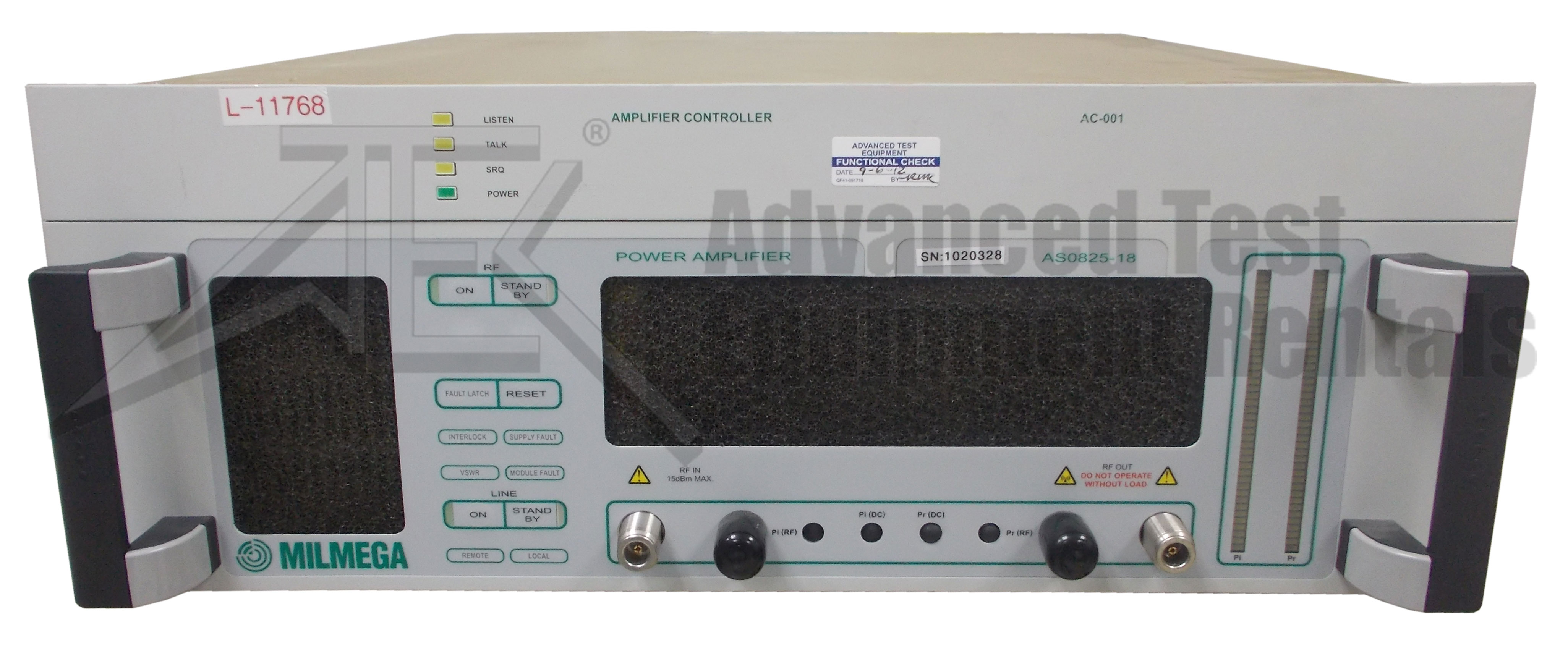

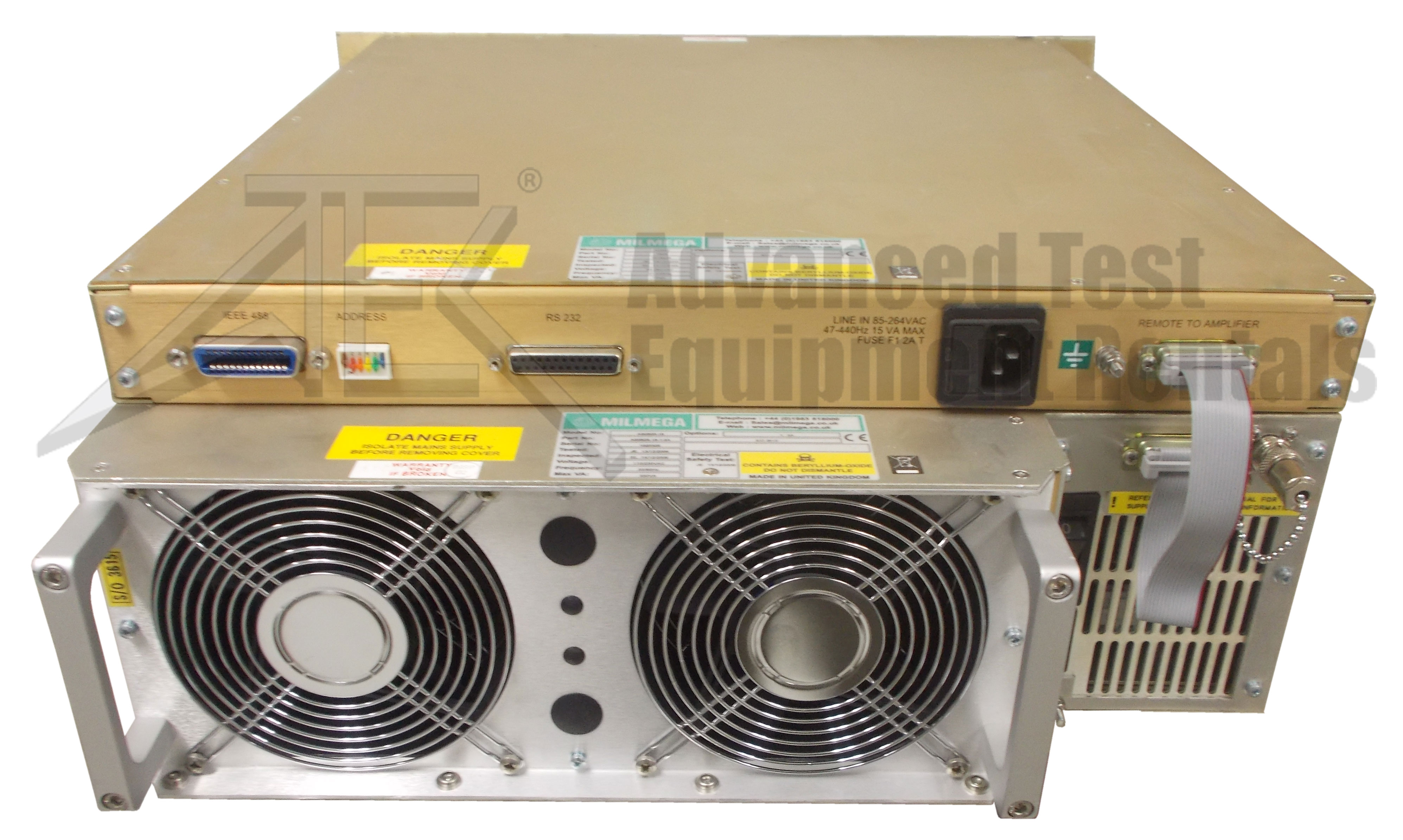

Milmega AS0825-18 Broadband Amplifier, 800 MHz - 2.5 GHz, 1000 Watts

The Milmega Limited AS0825-18 Broadband Amplifier is part the MILMEGA Series 2000 group of Broadband Class A Solid State Microwave Amplifiers. The MILMEGA Series 2000 0.8 GHz-2.5 GHz broadband amplifiers have an award winning innovative design which utilizes the latest GaAs FET and MMIC technologies. This provides an architecture with unique features and benefits which differentiate Series 2000 from other solid
state amplifiers, permitting an impressive array of input/output and sample port options and cost-effective power or bandwidth upgrades.

Options:

Option 1: IEEE/RS232 control (1U high)
Option 1a: ACOO2 Ethernet/USB/RS232 internally fitted control Fitted as standard on AS1860 & AS0860 Ranges
Option 2a: Front panel RF sample port SMA-f for a single band unit (SMA-f)
Option 2b: Front panel RF sample port SMA-f for a dual band unit. (SMA-f)
Option 3a: Front panel RF sample port N-type-f for a single band unit (N-type-f)
Option 3b: Front panel RF sample port N-type-f for a dual band unit (N-type-f)
Option 4a: Front panel detected sample port SMA-f for a single band unit (SMA-f)
Option 4b: Front panel detected sample port SMA-f for a dual band unit (SMA-f)
Option 5a: Rear panel RF sample port SMA-f for a single band unit (SMA-f)
Option 5b: Rear panel RF sample port SMA-f for a dual band unit (SMA-f)
Option 6a: Rear panel RF sample port N-type-f for a single band unit (N-type-f)
Option 6b: Rear panel RF sample port N-type-f for a dual band unit (N-type-f)
Option 7a: Rear panel detected sample port SMA-f for a single band unit (SMA-f)
Option 7b: Rear panel detected sample port SMA-f for a dual band unit (SMA-f)
Option 8: Rear panel RF i/p o/p ports N-type-f (N-type-f)
Option 8a: Rear panel dual RF i/p (SMA-f) o/p ports N type-f (N type-f)
Option 8b: Rear panel RF i/p, front panel RF o/p ports N type-f (N type-f)
Option 8d: Front panel RF i/p, rear panel RF o/p ports N type-f (N type-f)
Option 9: Preamplifier 10dB
Option 10: Preamplifier 20dB
Option 14: Rack sliders (adds 1U)
Option 15: Dual i/p o/p ports - for dual band amplifiers
Option 16: Dual i/p ports only - for dual band amplifiers
Option 17: Dual o/p ports only - for dual band amplifiers
Option 18: Fault slaving
Option 19: Invert logic IEEE
Option 20: Dual amps both on
Option 21: Single Phase Mains distribution box (1U high)
Option 21a: 3 Phase ‘STAR’ Mains Distribution box, (5 wire, 3U high)
Option 21b: 3 Phase ‘DELTA’ Mains Distribution box, (4 wire, 3U high)
Option 22a: Bench case Height 3U
Option 22b: Bench Case Height 4U
Option 22c: Bench Case Height 6U
Option 22d: Rack Casing with Wheels Height 12U
Option 22e: Rack Casing with Wheels Height 16U
Option 22f: Rack Casing with Wheels Height 20U
Option 22g: Rack Casing with Wheels Height 25U
Option 23a: Special In band Tuning
Option 26: 110V Power supply for high power models
Option 27: Gain control
Option 28a: Muting via TNC connector mounted on rear panel (No other rear panel options available if this is selected)
Option 28b: Muting via D Type connector on rear panel
Option 29: Pre-amp switching

Product Info Available Add-Ons Related Products

RF Input:

Power		Power Consumption	350 W
Psat(min)	20.9 W	Primary Power	85-260 V (50/60Hz)
Psat(min)	43.2 dBm
P1db(min)	18.6 W	Connectors
P1dB(min)	42.7 dBm	Type N female
		RF Output:	Type N female
Noise figure(max)	6.0 dB
Gain Variation	± 2.0 dB
Harmonic Distortion (min)	-20 dBc

Class leading linearity and noise specifications

Gain variation with temperature <0.06 dB/OC
IP3 typically 10 dB> P1 dB
Harmonics –20 dBc max
Spurious (max) –70dBc
Spurious (typical) –80 dBc

Max power

Unbeatable power density
Series 2000 will maintain full forward power into any load condition
Combiner/coupler integration as standard allows samples of incident and reflected power to be measured with virtually no loss
100% tested into short and open circuit
Up to 250 watts in a single 3U unit
Consistent over greater than octave bandwidths
Broadband CW power output to 1 kW
