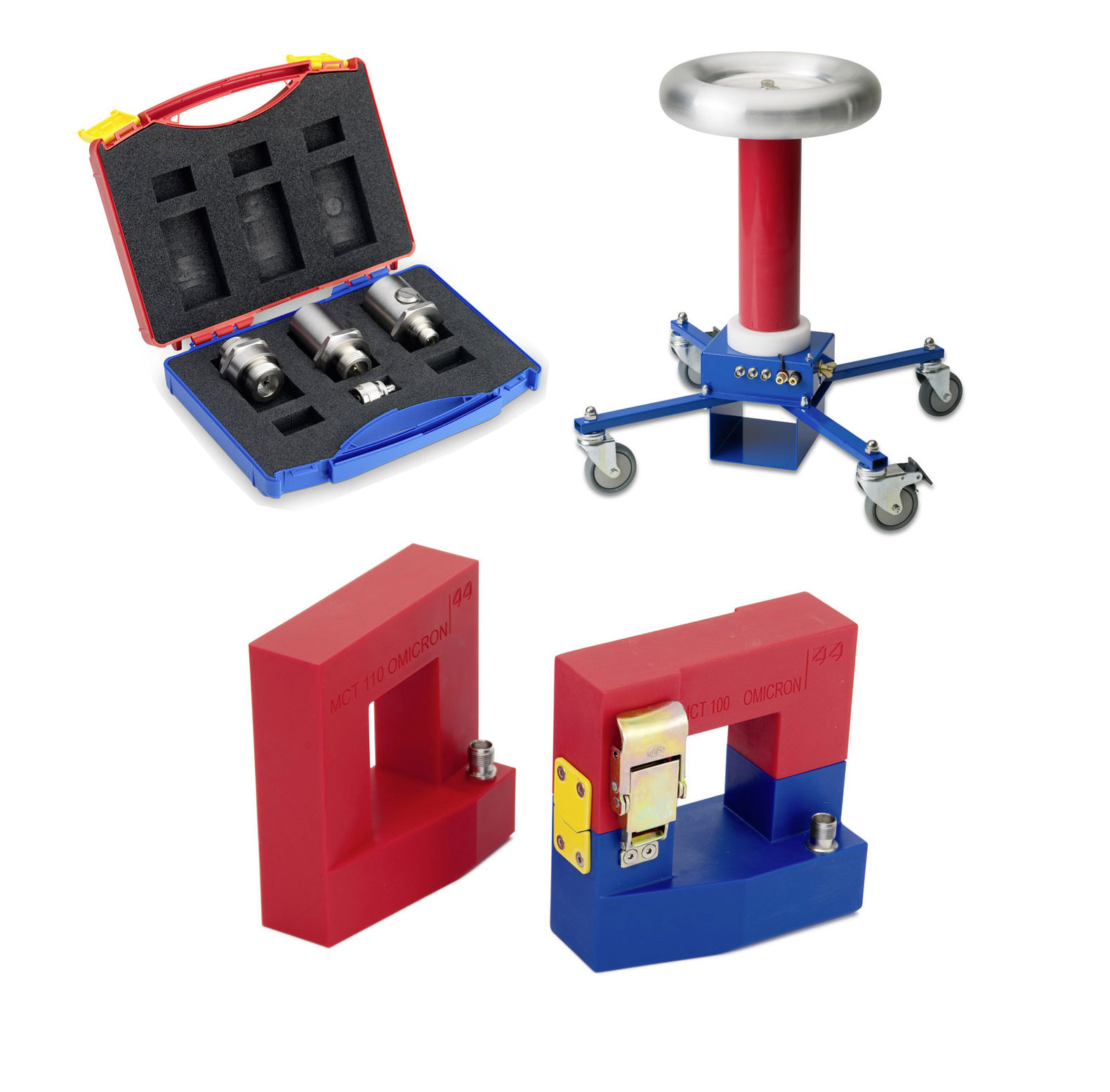

OMICRON MPD 500 Partial Discharge Measuring System

Rent OMICRON MPD 500 Partial Discharge Measuring System
Enlarge Image
Rent OMICRON MPD 500 Partial Discharge Measuring System Rent OMICRON MPD 500 Partial Discharge Measuring System
Request Quote Print Page
Datasheet
The OMICRON MPD 500 Partial Discharge Measuring System has been specially designed for providing fast and reliable results in a highthroughput environment. As a new member of the successful OMICRON MPD family with hundreds of systems worldwide in daily use, the MPD 500 is the ideal solution for state-of-the-art routine testing, clear pass / fail decisions and most easy reporting.


Specifications:

Center frequency range  0 Hz to 2.5 MHz
Input freq. bandwidth 100 kHz, 300 kHz, 1 MHz
Input frequency range V input: 0 Hz to 2.1 kHz
PD input: 0 Hz to 2,5 MHz
Input impedance V input: 1 MΩ, in parallel 1 μF
PD input: 50 Ω
Input voltage (max) V input: 60 V rms, PD input: 10 V rms
Dynamic range V input: 102 dB, PD input: 132 dB (overall)
PC requirements
Hardware (minimum) Pentium®  4 or later, Athlon®  64 or later /
  1 GB RAM / USB 2.0
PC operating system Windows 2000 Pro™ to Windows 7™
Accuracy
PD event time resolution < 2 ns
Input channels PD level: ± 1 % of calibrated PD value
Voltage: ± 0.05 % of calibrated voltage
Frequency: ± 1 ppm
Environmental conditions / mechanical data / supply voltage
Humidity / temperature 5 % to 100 % non-condensing
0 °C to 55 °C (operating)
-10 °C to 70 °C (storage)
Dimension (W x D x H) 110 x 190 x 44 mm / 4.3 x 7.5 x 1.7 in
Weight 600 g / 1.3 lbs
Power supply 8 to 12 V DC via ext. power supply or MPP 600 Li-Poly battery

How to Video: Omicron MPD 500 Partial Discharge Measuring
