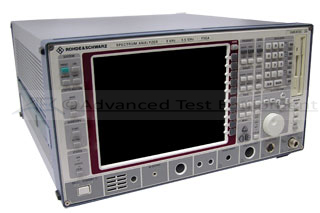

Rohde & Schwarz FSEA20 Spectrum Analyzer

Rohde & Schwarz FSEA20 Spectrum Analyzer
Enlarge Image
Request Quote Print Page
Datasheet
The FSEA20 9 kHz to 3.5 GHz Spectrum analyzer is part the FSE spectrum analyzers from Rohde&Schwarz which have been optimized both for general-purpose measurements and meeting the stringent requirements of testing advanced digital communication systems. Extremely high measurement speed, future-proof modular design and excellent characteristics put the analyzers right at the top of today's market – at an extremely attractive price. The frequency range for the FSEA20 can be extended to 7 GHz with option FSE-B2.

Options:
FSE-B1 Color Display
FSE-B2 7-GHz Frequency Extension
FSE-B3 TV Demodulator
FSE-B4 OCXO 10 MHz and Low Phase Noise
FSE-B5 FFT Filter
FSE-B7 Vector Signal Analyzer
FSE-B8 Tracking Generator 3.5 GHz
FSE-B9 Tracking Generator 3.5 GHz with I/Q Modulator
FSE-B12 Switchable Attenuator for Tracking Generator
FSE-B131 1-dB Attenuator
FSE-B15 Controller
FSE-B16 Ethernet Interface
FSE-B17 2nd IEC/IEEE-Bus Interface
FSE-B182 Removable Harddisk
FSE-B19 Second Harddisk for FSE-B18
FSE-B222 Increased Level Accuracy up to 2 GHz
FSE-B232 Broadband Output 741.4 MHz
FS-K3 Noise Measurement Software
FSE-K4 Phase Noise Measurement Software
FSE-Z2 PS/2 Mouse
FSE-K10/-K11 GSM Application Firmware
1) Cannot be retrofitted in combination with FSE-B22.
2) Factory-fitted only.


Features:

  • Combines the following functions: spectrum analysis and analysis of digitally modulated signals (option)
  • Spectrum analysis with maximum dynamic range
  • Adaptation of all models to your specific requirements by means of a wide range of options. Easy upgrading of basic models into top-class models
