Sorensen DCR150-10A DC Power Supply

Rent Sorensen DCR150-10A DC Power Supply
Enlarge Image

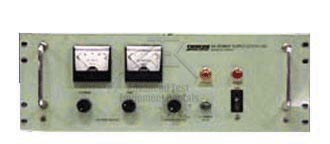

Sorensen DCR150-10A
Request Quote Print Page
Manual Datasheet

Specifications:


  • Output (Vdc): 0 - 150
  • Output Current (Adc): 0 - 10
  • Constant Voltage Regulation: ±.075% or ±30mV³
  • Constant Current Range (Adc): 0 - 10
  • Constant Current Regulation: ± 20mA
  • Constant Voltage Ripple: .4% + 150mV
  • Constant Current Ripple (Typ): 0.5%
  • Temperature
    Ambient (°C): 0 - 55
    Coef. MV/°C: 23
  • Typical Efficiency %: 72
  • Input Voltage 1 phase (Vac): 105 - 125
