Sorensen DCR16-625T5 16V, 625A 10 kW DC Power Supply

Rent Sorensen DCR16-625T5 16 Volt, 625 Amp, 10 KW DC Power Supply
Enlarge Image

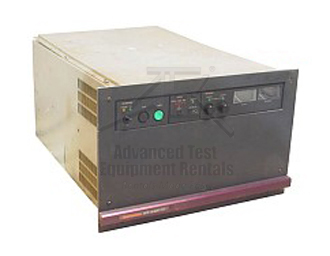

Sorensen DCR16-625T5
Request Quote Print Page
Datasheet

Specifications:


Output Power Voltage(Vdc) 0-16
Current (Adc) 50°C 625
60°C 531
70°C 375
Constant Voltage Regulation Line & Load (mV) 8-16
Constant Current Regulation (mA) 312-625
Constant Voltage Ripple(PARD) rms/mV 30
Constant Current Ripple(PARD) rms/mA 2000
Overvoltage Protection Standard
Drift (Typ.) % E0 max. .05%
% I0 max. .05%
Temperature Coeff. (Typ.) (mV.° C) 3.2
(mA/°C) 250
