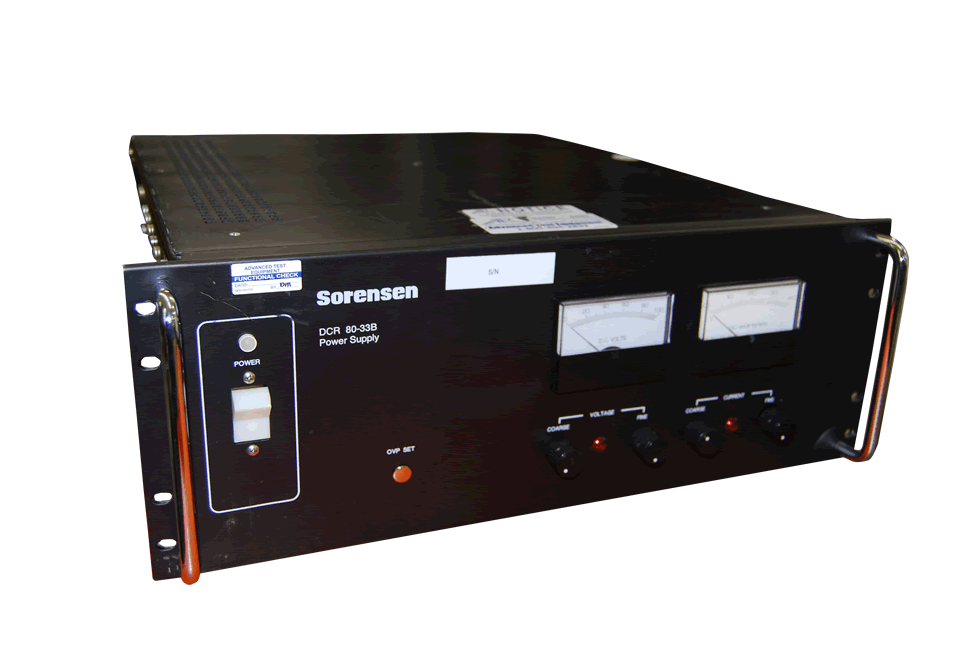

Sorensen DCR80-33B 80V, 33A DC Power Supply

Sorensen DCR80-33B 80V, 33A DC Power Supply
Enlarge Image
Sorensen DCR80-33B 80V, 33A DC Power Supply Sorensen DCR80-33B 80V, 33A DC Power Supply
Sorensen DCR80-33B
Request Quote Print Page
Manual Datasheet
0-80VDC, 0-33A Power Supply

Sorensen DCR80-33B Specs
  • Output Power
    Voltage (Vdc): 0 - 80
    Current (Adc): 40°C - 33
  • Low ripple and noise
  • Excellent voltage and current regulation with automatic crossover
  • Remote voltage and resistance programming in voltage and current modes
  • Adjustable current limiting with automatic recovery
  • Over voltage protection with crowbar standard, all models
  • Series Operation: 200 Vdc max. output (150 and 300 V models, two in series)
  • Parallel Operation: Master-slave or straight parallel; four units maximum in master-slave
  • Remote Shutdown: Remote relay, transistor or logic switching can be connected to shutdown terminals on back of supply
  • Cooling:, built-in fan
  • Standard Input Power
    Voltage (Vac): 187-229
    Current (Max. Aac): 27.2
