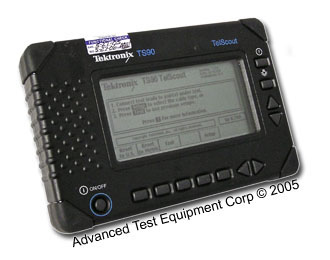

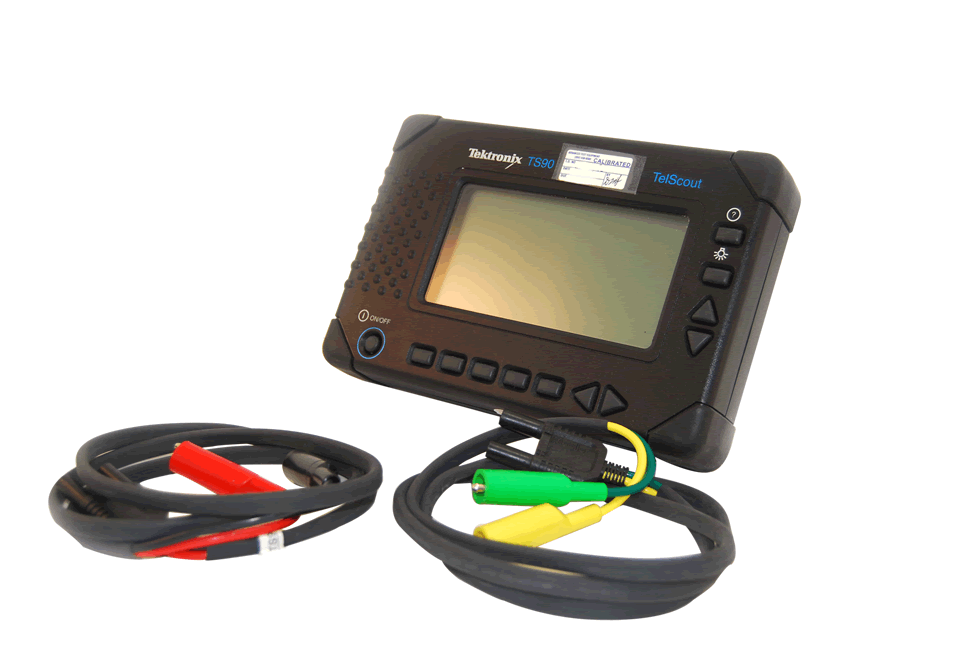

Tektronix TS 90 TDR Cable Tester

Tektronix TS 90 TDR Cable Tester
Enlarge Image
Tektronix TS 90 TDR Cable Tester Tektronix TS 90 TDR Cable Tester Tektronix TS 90 TDR Cable Tester
Tektronix Test Equipment TS90
Request Quote Print Page
Datasheet

Features:

  • Form Factor Benchtop
  • Type TDR
  • Cable Type Coaxial,FTP,ScTP,STP,UTP
  • Maximum Frequency 150 kHz
  • Maximum Distance Range 15 km
  • Maximum Distance Resolution 0.4 m
  • Integral Signal Source No
  • Minimum Pulse Width 5 ns
  • Maximum Pulse Width 2500 ns
  • Output Impedance 105 Ohm



Programmability/Connectivity
  • User Interface Proprietary



Compliance
  • CE Compliance Compliant
  • UL Compliance Not compliant



Power Requirements
  • Input Power USA (110V/60Hz)
  • Battery Requirement 9 V
  • Battery Life 4.5 hrs
