Advanced Amplifiers AA-818G-300-T TWT High Power Amplifier | 8.0 - 18.0 GHz, 300 W

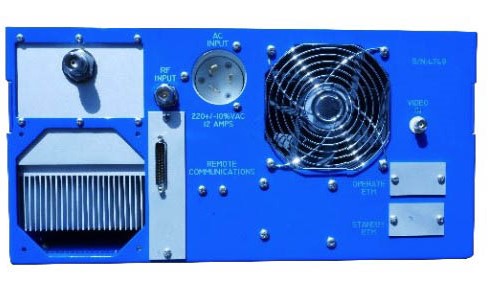

The Advanced Amplifiers AA-818G-300-T TWT High Power Amplifier is a highly reliable and durable amplifier with a frequency range of 8.0 to 18.0 GHz. With a modern TWT design with internal monitoring, protection circuits, and versatile interface options, the AA-818G-300-T is an ideal model for a variety of testing requirements. The amplifier has self-contained forced-air cooling and 300 W power capabilities. This model is user-friendly and has a rugged, blue exterior.
RF SPECIFICATIONS |
||
|---|---|---|
| Parameter | Specification | Notes |
| Frequency | 8.0 - 18.0 GHz | |
| Power Ripple | +/-0.1 dB (maximum) | |
| Output Peak Power | +54 dBm (minimum) | |
| Load VSWR | 2:1 (maximum) | |
| Duty Cycle | CW (maximum) | |
| Gain (for rated output) | 54 dB (minimum) | |
| Input Power (for Rated Output) | 0 dBm (typical) | |
| Spurious Output | 0 - 250 Hz >250 Hz |
-55 dBc (minimum) -60 dBc (minimum) |
| Output VSWR Protection | 100% | |
| Gain Stability | 0.25 dB/24 hours (typical) | |
MODULATION SPECIFICATIONS |
|
|---|---|
| Parameter | Specification |
| Pulse Width | 0.1 µs to CW |
| Repetition Rate | CW |
| Rise and Fall Time | 15 ns (maximum) |
| Droop | CW |
| Pulse Jitter | +/- 2 ns |
| Video/RF Throughput Delay | 300 ns (maximum) |
ELECTRICAL SPECIFICATIONS |
|
|---|---|
| Parameter | Specification |
| Primary Power Consumption | 1.5 kVa (maximum) |
| Elapsed Time Meter | 00,000.00 hours | 100% |
| Modulation Input Pulse | +5v TTL |
| Digital Interface | Ethernet (LAN)/RS-232 |
- Small form factor 5U chassis
- Modern TWT design with internal monitoring
- Instantaneous H and J-Band octave bandwidth
- Built-in protection circuits
- Versatile interface options
- High reliability and ruggedness
